Din X Male Metric W/Es Seal

Description & Features

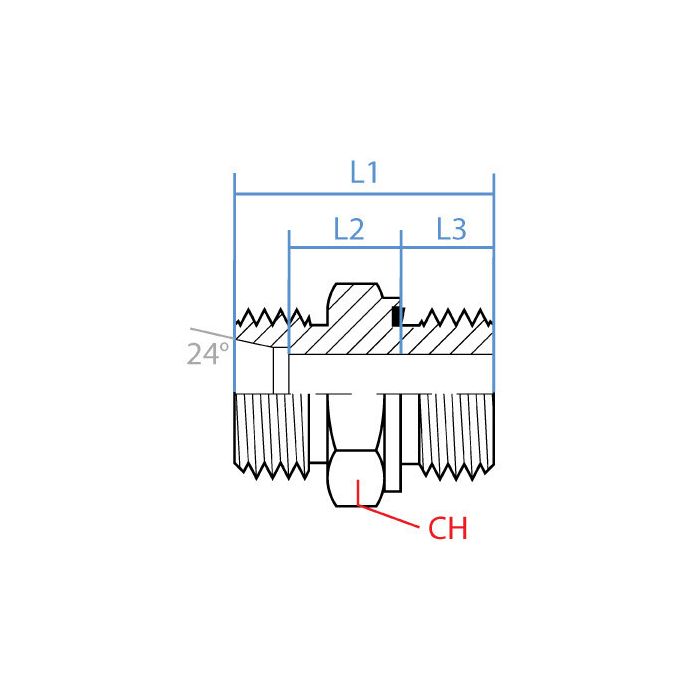

This straight Adaptall fitting features a Din tube connection on Side 1 and a metric connection on Side 2. Side 1 features a M36 x 2.0 male end with a S25 size, while Side 2 features a M27 x 2.0 male end with a 27mm size. The Din X Male Metric W/Es Seal fitting is constructed from steel, ensuring durability and reliable performance in demanding hydraulic applications.

SKU: 5068S-25-27

Supplier Part Number (MPN): 5068S-25-27

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M27 X 2.0	Side 2 Gender M	Side 2 Size 27mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068S-25-27	Product Weight 0.56 lbs

Product Questions & Answers (1)

Question by: Carl C on Nov 27, 2025, 4:12 PM

Trying to match up a straight adapter, is this the one with M36 x 2.0 on one side and M27 x 2.0 on the other?

Answer by: Customer Support on Nov 29, 2025, 12:59 PM

For a straight Adaptall fitting with a DIN tube male end on Side 1 and a male metric end on Side 2, this one matches those thread callouts: Side 1 is M36 x 2.0 (S25 size) and Side 2 is M27 x 2.0 (27 mm size).
