Bspp Nipple

Description & Features

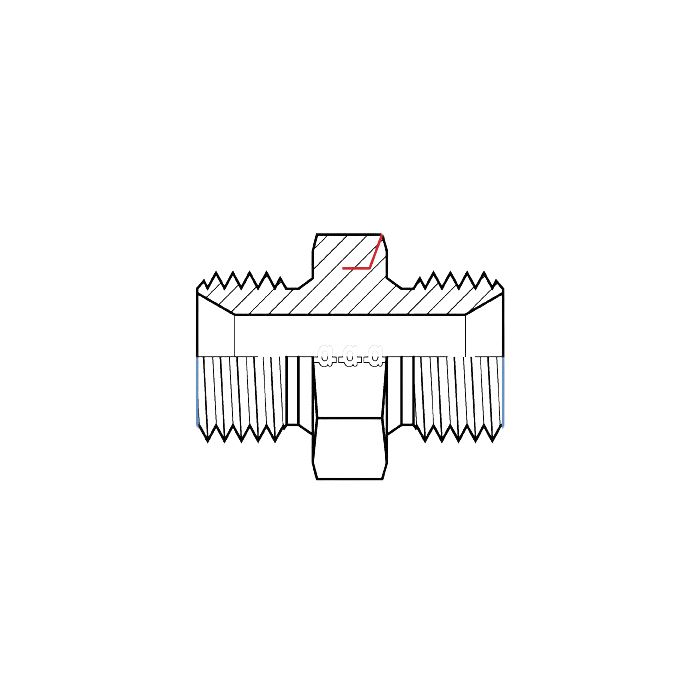

Manufactured from steel in a straight configuration, this BSPP Nipple provides a male-to-male threaded connection between two different BSPP port sizes. Side one carries a G 2 - 11 thread at 2 inches, while side two steps down to a G 1-1/2 - 11 thread at 1-1/2 inches, making it suited for reducing connections in hydraulic circuits where differing port sizes must be joined inline.

Supplied by Adaptall, the fitting measures 71mm in length with a 70mm across-flats width. The steel construction supports use in demanding industrial hydraulic environments where a reliable, leak-free threaded connection is required between BSPP-ported components.

SKU: 9000-32-24

Supplier Part Number (MPN): 9000-32-24

Specifications

Brand adapt-all	Connection Size 1 2 in	Connection Size 2 1-1/2 in	Connection Type Male BSP	Connection Type 1 Male BSPP 60 deg Flare	Connection Type 2 Male BSPP 60 deg Flare	Dimension Standards BS 5200	Dimensions 71 mm L	Finish Zinc-Plated	Fitting Type Nipple	Material Steel	Material Construction Carbon Steel	Series 9000 Series	Thread Size 1-1/2-11 x 2-11

Product Questions & Answers (1)

Question by: Darryl T on Jan 1, 2026, 12:05 PM

got two ports that dont match up, 2 inch bspp on one side and 1-1/2 on the other. is this the piece that steps it down?

Answer by: Customer Support on Jan 3, 2026, 6:56 AM

For tying those two BSPP sizes together inline, it fits that job. One end is a male G 2 - 11 thread (2 inch) and the other end is a male G 1-1/2 - 11 thread (1-1/2 inch), so it acts as a straight reducing nipple between the two port sizes.
