Male Metric X Male Metric

Description & Features

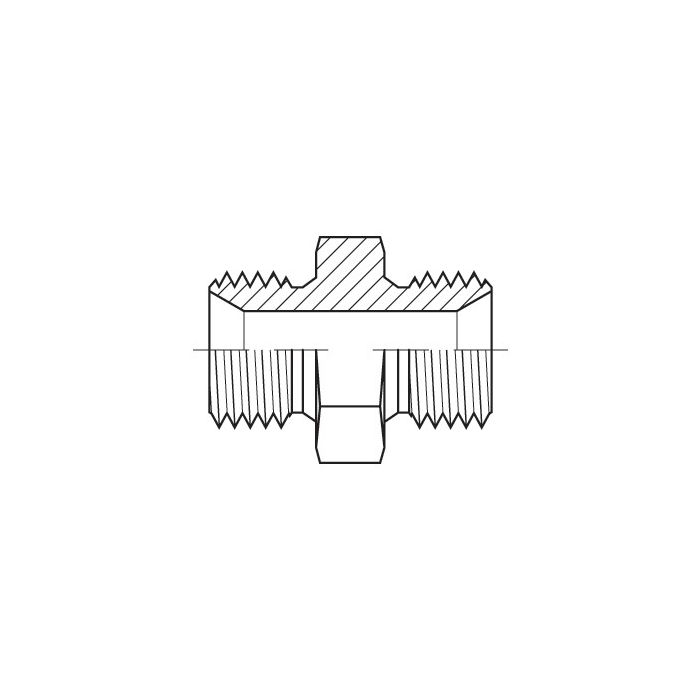

Constructed from steel in a straight configuration, this Adaptall Male Metric X Male Metric adapter connects an M12 x 1.5 male metric thread on one end to an M10 x 1.5 male metric thread on the other. The stepped-down design makes it well suited for bridging differently sized metric-threaded ports or components within hydraulic circuits where a direct same-size connection is not available.

With an overall length of 30.6mm and a 17mm wrench flat, the adapter is compact enough for use in space-constrained assemblies while remaining easy to install and torque properly. Steel construction provides the durability expected in hydraulic line and port applications across industrial machinery and fluid power systems.

SKU: 9001-12-10

Supplier Part Number (MPN): 9001-12-10

Specifications

CH Width 17mm	L Length 30.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size 12mm	Side 1 Type Metric	Side 2 Callout M10 X 1.5	Side 2 Gender M	Side 2 Size 10X1.5	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9001-12-10	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Lance W on Jun 10, 2025, 7:52 AM

Will this here adapter work to connect a M12 port to a M10?

Answer by: Customer Support on Jun 12, 2025, 6:16 AM

This Adaptall adapter is indeed designed to connect an M12 x 1.5 male metric thread to an M10 x 1.5 male metric thread.
