Mjic X Mbspp C/W Washer&O-Ring

Description & Features

The Mjic X Mbspp C/W Washer&O-Ring by Adaptall America is designed to facilitate fluid transfer in specialized industrial environments. It features two connection types: a 7/16 - 20 UNF male JIC on one end and a G 3/8 - 19 male BSPP on the other, ensuring versatility in various applications.

Constructed from durable steel, this straight-shaped component provides reliable performance and longevity. The product includes a washer and O-ring, adding an extra layer of sealing to enhance the connection efficiency.

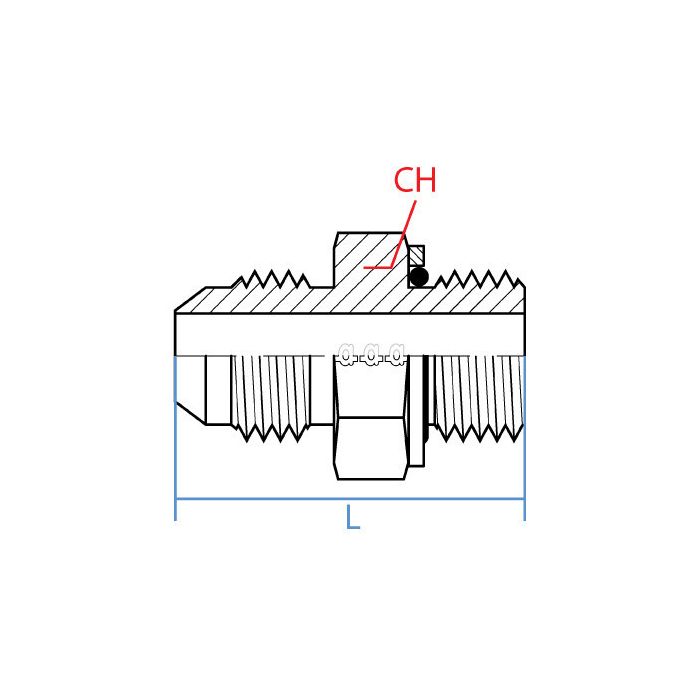

With a width of 24mm and a length of 35.5mm, it meets specific dimensional requirements for precision-fit installations. This connector does not include additional features like adjustable ends, color coding, or calibration, focusing instead on delivering straightforward, dependable functionality.

Supplier Part Number: 9002-04-06

Specifications

Brand adapt-all	Connection Size 1 1/4 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514	Dimensions 34 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9002 Series	Thread Size 3/8-19 x 7/16-20

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
9002-04-02	1/4 in	1/8 in	7/16-20 x 1/8-28
9002-04-04	1/4 in	1/4 in	7/16-20 x 1/4-19
9002-05-04	5/16 in	1/4 in	1/2-20 x 1/4-19
9002-05-06	5/16 in	3/8 in	1/2-20 x 3/8-19
9002-06-04	3/8 in	1/4 in	9/16-18 x 1/4-19
9002-06-06	3/8 in	3/8 in	9/16-18 x 3/8-19
9002-06-08	3/8 in	1/2 in	1/2-14 x 9/16-18
9002-08-04	1/2 in	1/4 in	3/4-16 x 1/4-19
9002-08-06	1/2 in	3/8 in	3/4-16, 3/8-19
9002-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14
9002-08-12	1/2 in	3/4 in	3/4-16 x 3/4-14
9002-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14
9002-10-12	5/8 in	3/4 in	3/4-14, 7/8-14
9002-12-08	3/4 in	1/2 in	1-1/16-12 x 1/2-14
9002-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
9002-12-16	3/4 in	1 in	1-1/16-12 x 1-11
9002-16-12	1 in	3/4 in	3/4-14, 1-5/16-12
9002-16-16	1 in	1 in	1-5/16-12 x 1-11
9002-20-20	1-1/4 in	1-1/4 in	1-1/4-11 x 1-5/8-12
9002-24-20	1-1/2 in	1-1/4 in	1-7/8-12 x 1-1/4-11
9002-24-24	1-1/2 in	1-1/2 in	1-7/8-12 x G1-1/2-11

Product Questions & Answers (3)

Question by: Janet R on Apr 21, 2025, 7:27 PM

got a hose end that’s 7/16-20 JIC male, will this adapter mate up right?

Answer by: Customer Support on Apr 23, 2025, 6:22 AM

Side 1 on this piece is a 7/16-20 UNF male JIC in the 1/4 inch size, and side 2 is a G 3/8-19 male BSPP in the 3/8 inch size, so it is meant to bridge those two thread standards in a straight adapter.

Question by: Johnny H on Jan 12, 2026, 5:25 PM

Will this fitting work with both JIC and BSPP setups, or do I need different adapters for each?

Answer by: Customer Support on Jan 13, 2026, 6:53 PM

It's designed with a 7/16 - 20 UNF male JIC on one side and a G 3/8 - 19 male BSPP on the other, so it'll handle both those connection types directly without needing extra adapters.

Question by: Freddie R on Jun 28, 2025, 2:41 PM

Got a machine running JIC fittings on one end but the hydraulic supply line coming off the pump is BSPP, does this adapter handle that kind of crossover, or do I need something else in between?

Answer by: Customer Support on Jun 30, 2025, 9:45 AM

That crossover is exactly what this fitting is built for. One end is a 7/16-20 UNF male JIC and the other is a G 3/8-19 male BSPP, so it connects those two thread standards directly with no additional adapters needed. The washer and O-ring are included and provide the sealing on the BSPP side, which is standard practice for that thread type.
