Mjic X Mbspp Cw Washer&O-Ring

Ask A Question

Description & Features

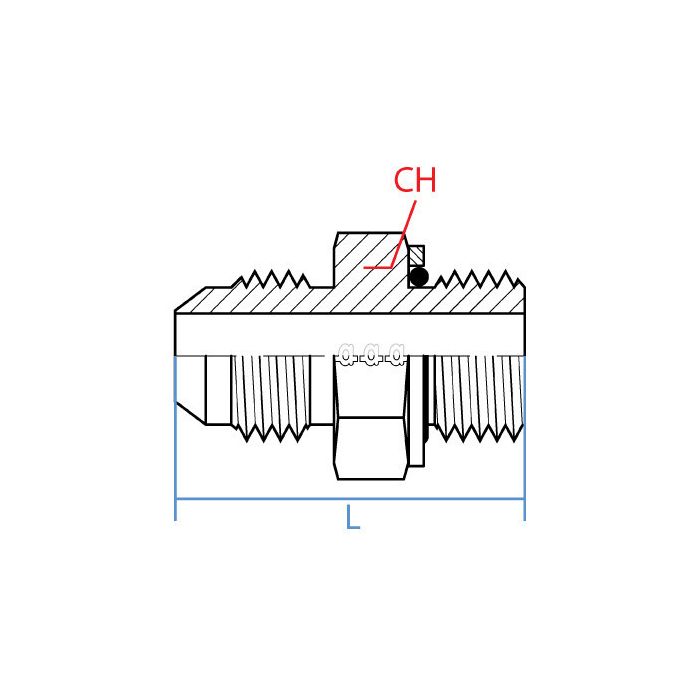

Crafted for demanding industrial settings, this adapter boasts a 7/8 - 14 UNF male Jic connection on one end and a G 1/2 - 14 male Bspp connection on the other. The inclusion of a washer and O-ring ensures a reliable and leak-proof assembly.

This adapter from Adaptall America is constructed from durable steel, providing exceptional longevity. With a 30mm width and a total length of 43.6mm, it offers a compact and robust solution for a myriad of industrial applications.

The straight design facilitates seamless integration into existing configurations, streamlining installation and maintenance. Meeting stringent industry standards, this adapter is a dependable choice for professionals seeking high-quality components.

No adjustable ends or extra features are included, ensuring a straightforward and efficient installation process.

Supplier Part Number: 9002-10-08

Specifications

Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
44 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9002 Series
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Kurt H on Apr 7, 2026, 1:10 PM
So this here adapter, it's steel, right? Wonderin' how well it holds up outside.
Answer by: Customer Support on Apr 9, 2026, 8:42 AM
Yes, the adapter is made of steel, which offers good durability for industrial use. However, the product information doesn't specify any weather or corrosion resistance, so consider environmental factors in your application.
Question by: Carl T on Jul 1, 2025, 8:36 PM
Got a machine running BSPP fittings on the hydraulic block and need to tie into a JIC line, this straight adapter gonna work for that kind of crossover?
Answer by: Customer Support on Jul 3, 2025, 10:01 AM
That's the kind of job this fitting handles. One end is a 7/8-14 UNF male JIC, the other is a G 1/2-14 male BSPP, so it bridges those two thread standards in a single piece. The washer and O-ring are included and seat against the BSPP side to keep things sealed up tight. Steel construction means it holds up in real working conditions, not just bench testing.
