Mjic X Mbspp Cw Washer&O-Ring

Description & Features

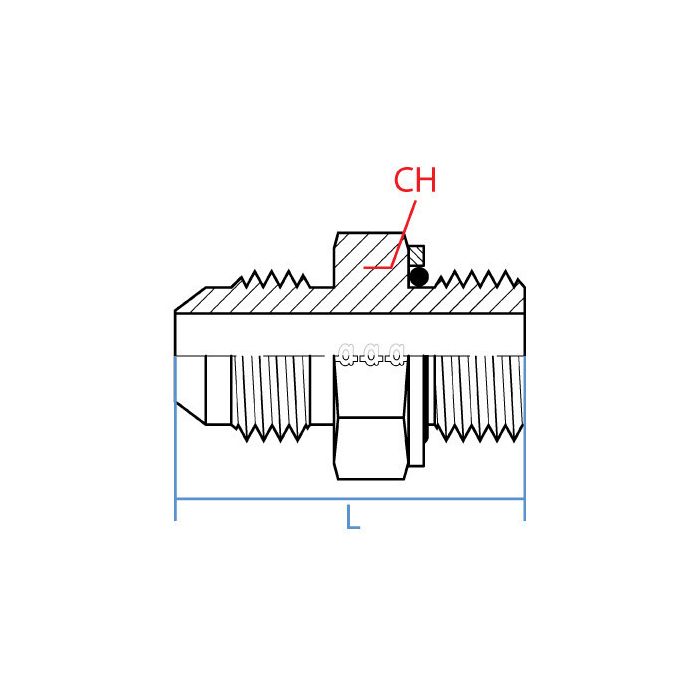

The Mjic X Mbspp Cw Washer&O-Ring, crafted by Adaptall America, is engineered from robust steel. This straight-shaped component features a 3/4" male JIC connection on Side 1 with a thread size of 1-1/16 - 12 UN. On Side 2, it provides a 3/4" male BSPP connection with a thread size of G 3/4 - 14.

Durable and reliable, it measures 36mm in width and 50.5mm in length, ensuring accurate fitment for a variety of industrial applications. This part requires no additional adjustments or accessories, simplifying both installation and maintenance processes.

MPN: 9002-12-12

Supplier Part Number: 9002-12-12

Specifications

CH Width 36mm	L Length 50.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 9002-1212, Alternate Part Number MI-02205725, Alternate Part Number MINO-03671X84594	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9002-12-12	Product Weight 0.35 lbs

Product Questions & Answers (2)

Question by: Floyd S on Jul 31, 2025, 8:33 PM

i’ve got a hose end that’s 3/4 JIC, will this mate up to a 3/4 BSPP port without any extra adapters?

Answer by: Customer Support on Aug 2, 2025, 8:59 AM

Built for that exact conversion, it goes from a 3/4 inch male JIC on one side with 1-1/16 - 12 UN threads to a 3/4 inch male BSPP on the other side with G 3/4 - 14 threads, and it includes the captive washer and O-ring for the BSPP end.

Question by: Brenda Y on Aug 22, 2025, 7:47 AM

Got a piece of equipment running BSPP fittings on one end and JIC on the other, this the kind of adapter that'd bridge those two together?

Answer by: Customer Support on Aug 24, 2025, 6:28 AM

That's what this one's for. One end is a 3/4" male JIC with a 1-1/16 - 12 UN thread, and the other side is a 3/4" male BSPP running G 3/4 - 14. Straight configuration, so there's no angle or offset to account for. The BSPP side uses a captive washer and O-ring to seal, which is standard for that connection type. Steel construction throughout, so it holds up in working industrial environments without a lot of fuss.
