Male Bspp X Male Metric

Description & Features

The Male Bspp X Male Metric adapter by Adaptall America is a key component designed to ensure reliable connections between distinct threading systems. Constructed from durable steel, this straight adapter withstands rigorous industrial conditions.

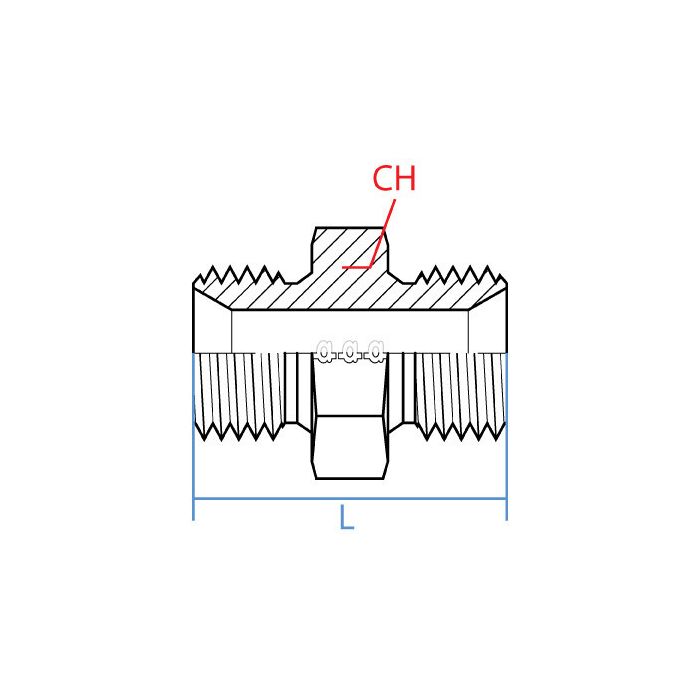

This adapter features a G 1/4 - 19 male thread on one side and an M14 X 1.5 male thread on the other, making it suitable for a variety of mechanical systems. Measuring 29.9mm in length and 19mm in width, it provides a compact and effective solution for your threading needs.

Manufactured to high-quality standards, the Male Bspp X Male Metric adapter is a dependable choice for professional environments, particularly in applications requiring a transition between Bspp and Metric threads without additional adjustments.

Supplier Part Number: 9004-04-14

Specifications

Brand adapt-all	Connection Size 1 1/4 in	Connection Size 2 14 mm	Connection Type Male BSP, Male Metric	Connection Type 1 Male BSPP 60 deg Flare	Connection Type 2 Male Metric	Dimension Standards BS 5200, DIN 7631	Dimensions 30 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9004 Series	Thread Size M14x1.5 x 1/4-19

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
9004-04-12	1/4 in	12 mm	M12x1.5 x 1/4-19
9004-04-16	1/4 in	S16	M16x1.5 x 1/4-19
9004-04-18	1/4 in	18 mm	M18x1.5 x 1/4-19
9004-04-22	1/4 in	22 mm	1/4-19 x M22x1.5
9004-06-12	3/8 in	12 mm	3/8-19 x M12x1.5
9004-06-14	3/8 in	14 mm	3/8-19 x M14x1.5
9004-06-16	3/8 in	S16	3/8-19 x M16x1.5
9004-06-18	3/8 in	18 mm	M18x1.5 x 3/8-19
9004-06-20	3/8 in	20 mm	M20x1.5 x 3/8-19
9004-06-22	3/8 in	22 mm	M22x1.5 x 3/8-19
9004-08-16	1/2 in	S16	M16x1.5 x 1/2-14
9004-08-18	1/2 in	18 mm	1/2-14 x M18x1.5
9004-08-20	1/2 in	20 mm	M20x1.5 x 1/2-14
9004-08-22	1/2 in	22 mm	M22x1.5 x 1/2-14
9004-08-26	1/2 in		M26x1.5 x 1/2-14
9004-10-22	5/8 in	22 mm	5/8-14 x M22x1.5
9004-10-26	5/8 in		5/8-14 x M26x1.5
9004-12-16	3/4 in	S16	3/4-14 x M16x1.5
9004-12-18	3/4 in	18 mm	3/4-14 x M18x1.5
9004-12-20	3/4 in	20 mm	3/4-14 x M20x1.5
9004-12-22	3/4 in	22 mm	M22x1.5 x 3/4-14
9004-12-24	3/4 in	24 mm	M24x1.5 x 3/4-14
9004-12-26	3/4 in		M26x1.5 x 3/4-14
9004-16-26	1 in		1-11 x M26x1.5
9004-16-27X2.0	1 in		1-11 x M27x2
9004-16-30	1 in	S30	1-11 x M30x1.5

Product Questions & Answers (3)

Question by: Curt R on Aug 6, 2025, 9:08 AM

trying to hook a G 1/4-19 port to an M14 x 1.5 line, is this the right adapter?

Answer by: Customer Support on Aug 7, 2025, 10:55 AM

For that thread changeover, it matches up as a straight steel adapter with a G 1/4-19 BSPP male on one end and an M14 x 1.5 metric male on the other.

Question by: Darryl E on Oct 12, 2025, 7:06 PM

Will this here adapter work to hook up somethin' with a G 1/4 - 19 fitting to somethin' that takes M14 X 1.5?

Answer by: Customer Support on Oct 14, 2025, 6:49 AM

This adapter's got you covered for connecting a G 1/4 - 19 male thread to an M14 X 1.5 male thread. It's made to bridge those two different systems directly.

Question by: Hubert C on Aug 30, 2025, 12:12 PM

Got a line on my equipment that's got a metric port, M14 x 1.5, and I need to tie it into something with a G 1/4-19 BSPP fitting. This adapter do that straight shot, no reducers or extra pieces?

Answer by: Customer Support on Sep 1, 2025, 6:24 AM

That's what this one does. One end is G 1/4-19 BSPP male, the other is M14 x 1.5 metric male, and it runs straight through with no offsets or angles. Steel construction, so it holds up in working conditions without babying. At just under 30mm long, it won't eat up a lot of space in a tight hydraulic connections setup either.
