Male Bspp X Male Metric

Ask A Question

Description & Features

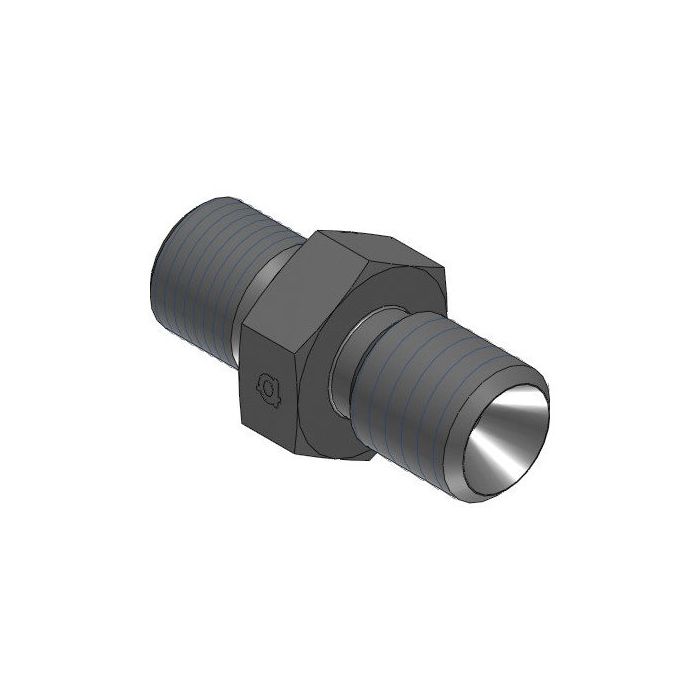

This Adaptall straight fitting is a male BSPP X Male Metric adapter, constructed of durable steel for hydraulic applications. It adapts a 3/8" BSPP male connection to a 22mm metric male connection.

This Male BSPP X Male Metric adapter has a Side 1 callout of G 3/8 - 19 and a Side 2 callout of M22 X 1.5. It has a 27mm wrench flat and an overall length of 33.7mm.

SKU: 9004-06-22

Supplier Part Number (MPN): 9004-06-22

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
22 mm
Connection Type
Male BSP, Male Metric
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male Metric
Dimension Standards
BS 5200, DIN 7631
Dimensions
34 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9004 Series
Thread Size
M22x1.5 x 3/8-19

Product Questions & Answers (3)

Question by: Denise S on Mar 22, 2026, 8:37 PM
got a fitting on an old piece of equipment marked G 3/8 - 19 and need to tie into a metric line running M22 X 1.5, this the right part for that?
Answer by: Customer Support on Mar 24, 2026, 4:14 PM
That's what this adapter is built for. One end is a 3/8" BSPP male connection with the G 3/8 - 19 thread spec, and the other is a 22mm metric male at M22 X 1.5. Both male ends, straight configuration, so just make sure your application accounts for two male fittings connecting into your existing ports or hoses accordingly.
Question by: Freddie B on Jul 12, 2025, 9:46 AM
Will this fitting hold up okay in a hydraulic system on farm equipment?
Answer by: Customer Support on Jul 13, 2025, 4:52 PM
Built from durable steel, this Adaptall straight fitting is designed for hydraulic applications. It should work well in standard farm equipment hydraulic systems.
Question by: Lance T on Mar 24, 2026, 3:47 PM
got a hose end thats G 3/8 - 19 BSPP male, will this adapt it over to M22 x 1.5 metric male?
Answer by: Customer Support on Mar 25, 2026, 6:22 PM
Function-wise, it is a straight adapter that goes from a G 3/8 - 19 BSPP male on one side to an M22 x 1.5 metric male on the other.
