Male Bspp X Male Metric

Ask A Question

Description & Features

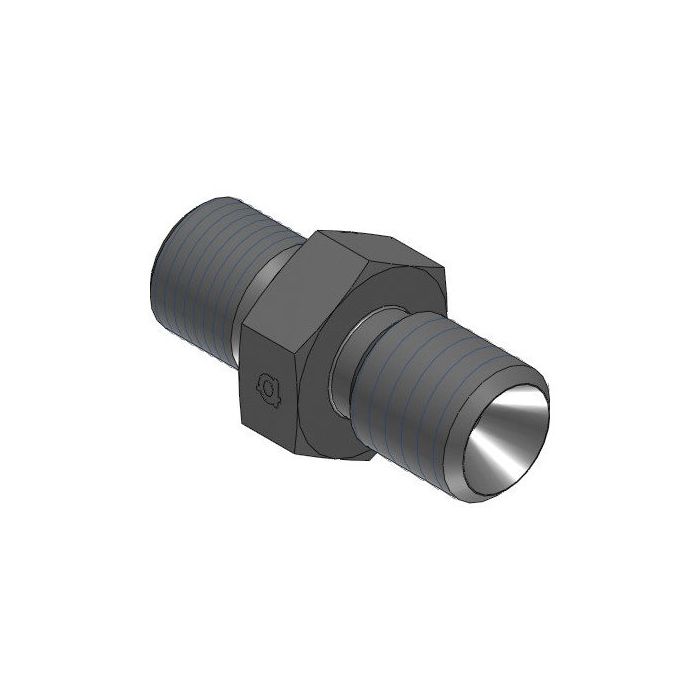

Constructed from steel in a straight configuration, this Adaptall Male BSPP X Male Metric adapter connects a G 1/2-14 BSPP male thread on one end to an M18 x 1.5 metric male thread on the other. With an overall length of 34.5mm and a 27mm CH width, it is sized for straightforward integration into hydraulic assemblies requiring a transition between British Standard Parallel Pipe and metric thread standards.

The straight body keeps the connection compact and in-line, making it well suited for space-constrained installations where routing flexibility is limited. Steel construction provides the durability expected in industrial hydraulic service.

SKU: 9004-08-18

Supplier Part Number (MPN): 9004-08-18

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
18 mm
Connection Type
Male BSP, Male Metric
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male Metric
Dimension Standards
BS 5200, DIN 7631
Dimensions
36 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9004 Series
Thread Size
1/2-14 x M18x1.5

Product Questions & Answers (3)

Question by: Wes B on Sep 21, 2025, 9:03 AM
got a hydraulic line coming off a British-threaded port and need to tie into a metric fitting on the other end, this the right piece for that?
Answer by: Customer Support on Sep 22, 2025, 9:39 AM
That's what this adapter is built for. One end is a G 1/2-14 BSPP male thread, and the other is an M18 x 1.5 metric male thread, so it bridges those two standards in a single straight body. Steel construction holds up fine in industrial hydraulic service, and at 34.5mm long with a 27mm wrench flat, it keeps things compact when you're working in a tight spot.
Question by: Ralph P on Aug 15, 2025, 4:39 PM
What's the width on this fitting, gotta make sure it'll fit in the space I got.
Answer by: Customer Support on Aug 17, 2025, 8:41 AM
The width across the flats (CH width) on this Adaptall fitting is 27mm.
Question by: Ralph C on May 21, 2025, 5:44 PM
got a G 1/2-14 bsp p port on one side and need to land on M18 x 1.5, is this the right adapter?
Answer by: Customer Support on May 23, 2025, 6:48 AM
For a straight thread-to-thread changeover, this adapter matches a G 1/2-14 BSPP male on one end and an M18 x 1.5 metric male on the other, so it fits that exact thread pairing.
