Male Bspp X Male Metric

Description & Features

Constructed from steel in a straight configuration, this adapter provides a reliable threaded connection between a G 5/8-14 Male BSPP port and an M22 x 1.5 Male Metric thread. The Male BSPP X Male Metric adapter from Adaptall measures 42.9mm in length with a 30mm wrench width, making it straightforward to install and torque correctly in tight assemblies.

Adaptall's two-piece adapter system is widely used in hydraulic circuit assembly where different thread standards must be joined without modifying existing components. The steel construction suits demanding industrial environments where durability and consistent thread engagement are required.

SKU: 9004-10-22

Supplier Part Number (MPN): 9004-10-22

Specifications

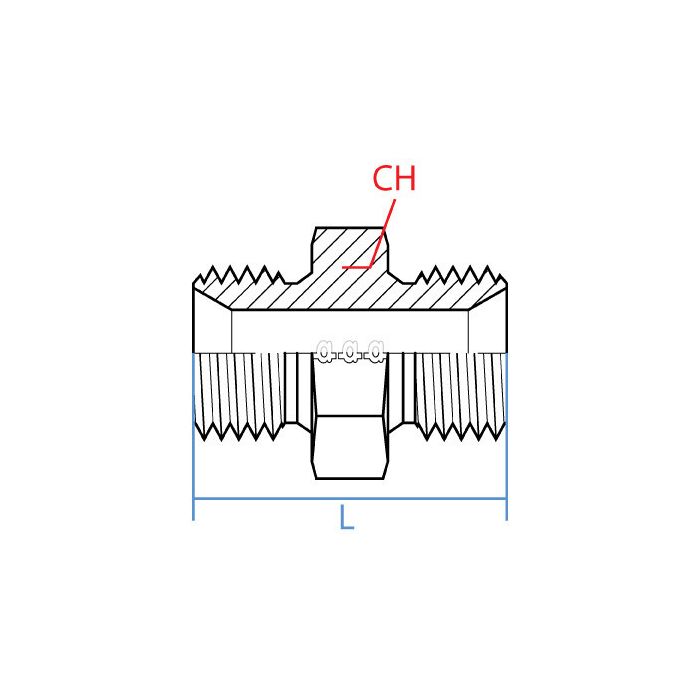

CH Width 30mm	L Length 42.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9004-10-22	Product Weight 0.30 lbs

Product Questions & Answers (3)

Question by: Floyd H on May 19, 2025, 8:11 PM

i’ve got a G 5/8-14 male BSPP port on one side and need to tie into an M22 x 1.5 metric thread, is that exactly what this adapter is for

Answer by: Customer Support on May 21, 2025, 6:33 AM

Built for joining two different thread standards, it connects a G 5/8-14 Male BSPP on one end to an M22 x 1.5 Male Metric on the other in a straight steel adapter.

Question by: Patty E on Nov 14, 2025, 11:27 AM

Got a hydraulic line running G 5/8-14 BSPP on one end and M22 x 1.5 metric on the other, will this adapter actually bridge those two without any modification to the existing ports?

Answer by: Customer Support on Nov 16, 2025, 6:06 AM

That's what this one's built for. One end is G 5/8-14 Male BSPP and the other is M22 x 1.5 Male Metric, both in a straight configuration, so you're threading directly into your existing ports without cutting, welding, or reworking anything. Both sides are male, so make sure your mating ports are female on each end before ordering.

Question by: Dustin M on Jan 17, 2026, 4:49 PM

Will this adapter work for connecting a 5/8" BSPP male fitting to an M22 x 1.5 male fitting?

Answer by: Customer Support on Jan 19, 2026, 7:57 AM

This adapter is designed to reliably connect a G 5/8-14 Male BSPP port to an M22 x 1.5 Male Metric thread.
