Male Bspp X Male Metric

Ask A Question

Description & Features

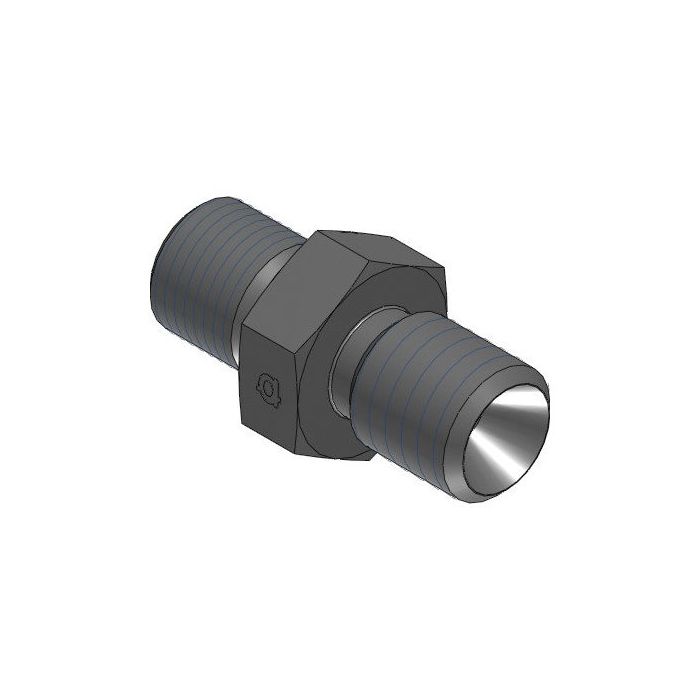

This Adaptall fitting is a Male BSPP X Male Metric adapter, constructed of durable steel for hydraulic applications. This straight fitting has a Side 1 callout of G 3/4 - 14, a 3/4" Side 1 size, and a BSPP Side 1 type, while Side 2 has a callout of M16 X 1.5, a 16mm Side 2 size, and a Metric Side 2 type.

The Adaptall fitting has a 32mm Adaptall Ch Width and a 41.9mm Adaptall L Length.

SKU: 9004-12-16

Supplier Part Number (MPN): 9004-12-16

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
S16
Connection Type
Male BSP, Male Metric
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male Metric
Dimension Standards
BS 5200, DIN 7631
Dimensions
43 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9004 Series
Thread Size
3/4-14 x M16x1.5

Product Questions & Answers (2)

Question by: Cindy T on Apr 26, 2025, 4:23 PM
got a hose end that’s G 3/4 - 14 on one side and M16 x 1.5 on the other. is this the right adapter to tie those together?
Answer by: Customer Support on Apr 28, 2025, 6:29 AM
Match the thread callouts and you are in good shape. This adapter is male BSPP on Side 1 with a G 3/4 - 14 thread, and male metric on Side 2 with an M16 x 1.5 thread, in a straight steel fitting.
Question by: Todd T on Oct 4, 2025, 11:02 AM
Will this fitting hold up okay in a hydraulic system on a farm?
Answer by: Customer Support on Oct 5, 2025, 9:39 PM
Constructed from steel, this fitting is designed for demanding hydraulic applications where durability is important.
