Male Bspp X Male Metric

Ask A Question

Description & Features

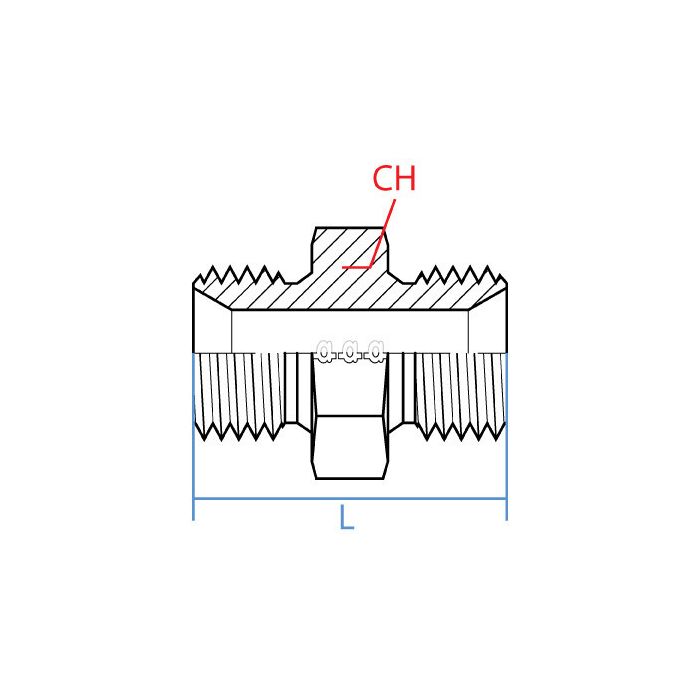

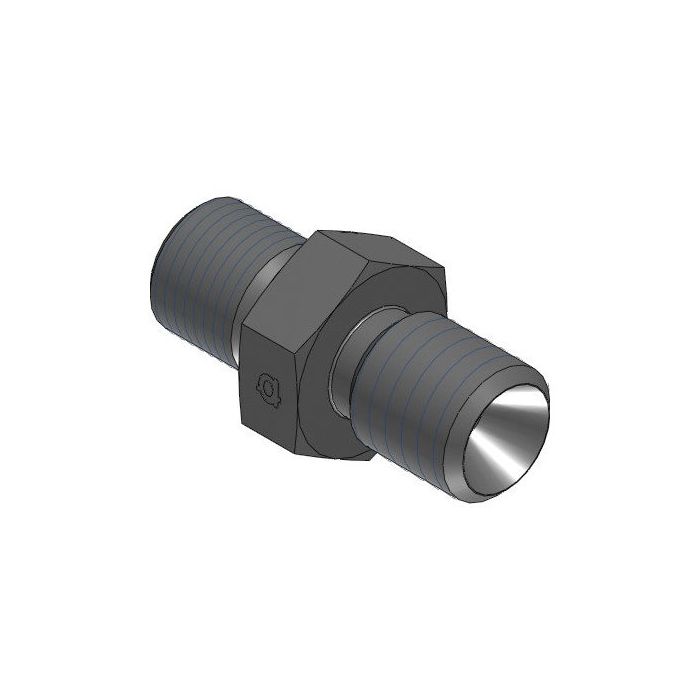

This Adaptall straight adapter fitting connects male BSPP and male metric threads. It features a G 3/4-14 male BSPP thread on one side with a 3/4" size, and a M18 x 1.5 male metric thread on the other side with an 18mm size.

Constructed of steel, this Male BSPP X Male Metric fitting offers a reliable connection with a 32mm wrench flat and an overall length of 42.9mm.

SKU: 9004-12-18

Supplier Part Number (MPN): 9004-12-18

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
18 mm
Connection Type
Male BSP, Male Metric
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male Metric
Dimension Standards
BS 5200, DIN 7631
Dimensions
40.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9004 Series
Thread Size
3/4-14 x M18x1.5

Product Questions & Answers (3)

Question by: Howard P on Oct 1, 2025, 8:24 AM
Got a metric port on a hydraulic manifold that's M18 x 1.5 and need to tie into a BSPP line, this fitting do that job?
Answer by: Customer Support on Oct 3, 2025, 6:01 AM
Yeah, that's exactly what this one's built for. One end is M18 x 1.5 male metric, the other is G 3/4-14 male BSPP, so you'd be connecting those two thread types in a straight shot. Both sides are male, so make sure your ports are female on both ends. Steel construction, 32mm wrench flats, and it runs 42.9mm end to end, which is useful to know if space is tight around the manifold.
Question by: Shawn T on May 9, 2025, 7:03 PM
trying to hook a G 3/4-14 port to an M18 x 1.5 line, is this the right straight adapter?
Answer by: Customer Support on May 10, 2025, 7:24 PM
Straight-through connection is what it’s built for. One end is a male BSPP G 3/4-14 thread (3/4 inch size) and the other end is a male metric M18 x 1.5 thread (18 mm size), both on a steel body.
Question by: Earl O on Dec 5, 2025, 2:21 PM
Will this fitting work to connect a 3/4" BSPP male thread to an 18mm metric male thread?
Answer by: Customer Support on Dec 6, 2025, 2:30 PM
Yes, that's precisely what this Adaptall fitting is designed for. It has a G 3/4-14 male BSPP thread on one side and an M18 x 1.5 male metric thread on the other.
