Male Bspp X Male Metric

Description & Features

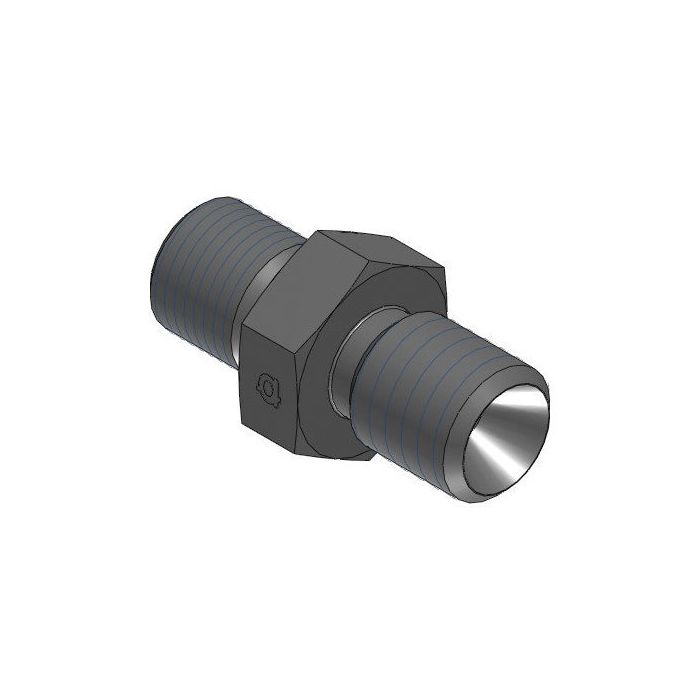

This steel straight adapter fitting features a male BSPP (British Standard Pipe Parallel) thread on one end and a male Metric thread on the other. The Adaptall fitting has a Side 1 callout of G 1 - 11 and a Side 1 size of 1". The Side 2 callout is M30 X 1.5 with a Side 2 size of 30X1.5. This Male Bspp X Male Metric adapter has a 41mm wrench flat and an overall length of 53.4mm.

SKU: 9004-16-30

Supplier Part Number (MPN): 9004-16-30

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
S30
Connection Type
Male BSP, Male Metric
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male Metric
Dimension Standards
BS 5200, DIN 7631
Dimensions
53.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9004 Series
Thread Size
1-11 x M30x1.5

Product Questions & Answers (2)

Question by: Roy M on Jun 8, 2025, 1:09 PM
Got a hydraulic line coming off a British-made pump with a 1" BSPP male port, need to tie into a metric fitting on the other end that's M30 x 1.5. This the right adapter for that?
Answer by: Customer Support on Jun 10, 2025, 10:45 AM
That's what this one's built for. One end is G 1-11 male BSPP, which covers your 1" British Standard Pipe Parallel connection, and the other end comes out as M30 x 1.5 male metric. Both sides are male, so you'd need female ports or couplings on whatever you're threading into. It's a straight adapter, steel construction, 53.4mm overall length with a 41mm wrench flat for tightening. Solid fit for bridging that BSPP-to-metric gap.
Question by: Ross A on Sep 18, 2025, 8:48 PM
trying to hook a G 1-11 port up to a metric line, is this the right adapter?
Answer by: Customer Support on Sep 20, 2025, 8:25 AM
For that kind of mix-and-match, it’s a straight steel adapter with a male BSPP thread on one end (G 1 - 11, 1 inch) and a male Metric thread on the other (M30 x 1.5, 30x1.5).
