Male Jic X Male Bspp

Ask A Question

Description & Features

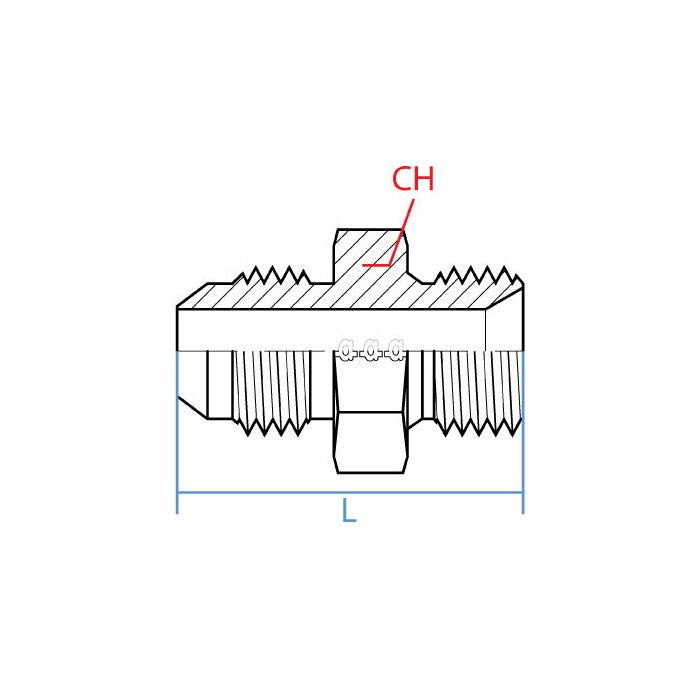

Constructed from durable steel, this male JIC to male BSPP adapter ensures reliable performance in industrial hydraulic systems. The adapter features a 7/16 - 20 UNF thread on the JIC side and a G 1/8 - 28 thread on the BSPP side, making it suitable for connecting various hydraulic components. Its straight shape and precise dimensions, including a 14mm width across flats and a total length of 30.6mm, offer seamless integration into existing setups.

Designed by Adaptall, this adapter facilitates the connection between JIC and BSPP fittings, providing versatility in fluid power applications. With male connections on both sides, it supports easy installation and secure connections, minimizing the risk of leaks. Ideal for applications requiring robust and dependable hydraulic connections, this component enhances the efficiency of fluid transfer systems.

SKU: 9005-04-02

Supplier Part Number (MPN): 9005-04-02

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
29 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
7/16-20 x 1/8-28

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Todd T on Jan 31, 2026, 7:25 PM
got a 1/4" JIC line i need to tie into a 1/8" BSPP port, this the right piece for that?
Answer by: Customer Support on Feb 2, 2026, 10:18 AM
That's what this adapter is built for. One end is 7/16-20 UNF, which is the thread spec for 1/4" JIC, and the other end is G 1/8-28, the standard BSPP thread for a 1/8" port. Both ends are male, so you'd need the mating female fittings on each side to complete the connection. Steel construction, straight profile, nothing fancy, just a solid piece for bridging those two thread types in a hydraulic line.
Question by: Eddie C on Nov 25, 2025, 4:54 PM
Will this here fitting hold up alright in a hydraulic setup on farm equipment?
Answer by: Customer Support on Nov 27, 2025, 6:34 AM
Constructed from durable steel, this adapter is designed for reliable performance in industrial hydraulic systems, making it suitable for the demands of farm equipment.
Question by: Ricky B on Jun 25, 2025, 10:45 AM
trying to swap an adapter on a little hydraulic line. is this the one that goes from 7/16-20 UNF JIC to G 1/8-28 BSPP?
Answer by: Customer Support on Jun 27, 2025, 8:03 AM
Match it up by the thread callouts and genders. This adapter is male JIC on one side with 7/16 - 20 UNF (1/4 inch size), and male BSPP on the other side with G 1/8 - 28 (1/8 inch size), and it is a straight steel fitting.
