Male Jic X Male Bspp

Description & Features

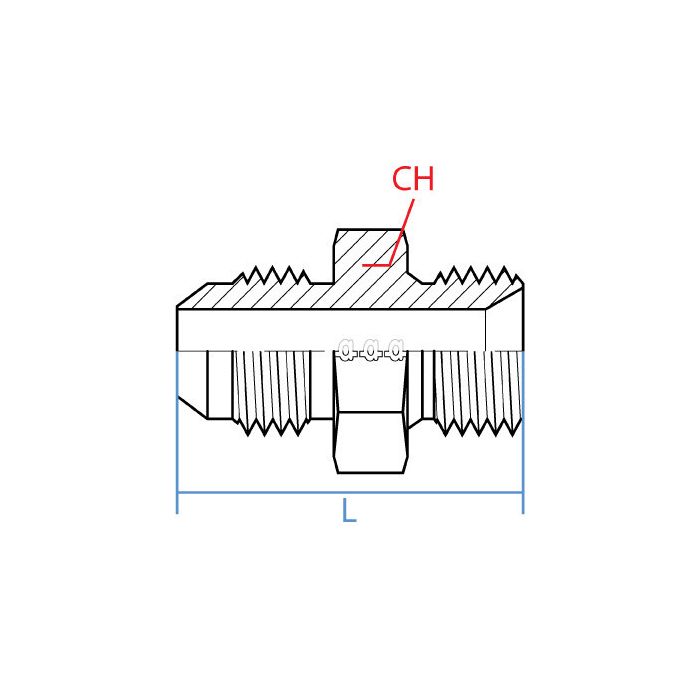

This straight Adaptall fitting connects male JIC and male BSPP ports.

It features a 1/4" male JIC side with 7/16 - 20 UNF threads and a 1/4" male BSPP side with G 1/4 - 19 threads. This steel fitting has a 19mm wrench flat and an overall length of 33.1mm.

SKU: 9005-04-04

Supplier Part Number (MPN): 9005-04-04

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
35.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
7/16-20 x 1/4-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Diane K on Jun 25, 2025, 11:27 AM
Got a piece of equipment with a G 1/4-19 BSPP port and need to tie into a JIC line, this the right adapter for that?
Answer by: Customer Support on Jun 27, 2025, 6:55 AM
That's what this fitting handles. One end is 1/4" male JIC running 7/16-20 UNF threads, and the other end is 1/4" male BSPP with G 1/4-19 threads. Both sides are male, so you'd be threading this into female ports on each end of your connection. It's a straight adapter, steel construction, with a 19mm wrench flat to torque it down proper. Overall length comes in at 33.1mm, so it's compact enough to fit in tighter hydraulic connections setups without a lot of extra stick-out.
Question by: Gene G on Feb 24, 2026, 10:07 AM
got a hose end that’s 7/16-20 JIC on it and the other side is G 1/4-19 BSPP. is this the straight adapter for that?
Answer by: Customer Support on Feb 25, 2026, 10:39 AM
Matches that combo. One end is a 1/4 in male JIC with 7/16-20 UNF threads, and the other end is a 1/4 in male BSPP with G 1/4-19 threads, in a straight steel fitting.
Question by: Freddie M on Jun 24, 2025, 12:01 PM
Just wanna make sure, will this fitting work to connect a JIC to a BSPP line?
Answer by: Customer Support on Jun 26, 2025, 6:43 AM
This Adaptall fitting is indeed designed to connect male JIC and male BSPP ports. It has a 1/4" male JIC side with 7/16 - 20 UNF threads and a 1/4" male BSPP side with G 1/4 - 19 threads.
