Male Jic X Male Bspp

Ask A Question

Description & Features

This straight steel adapter features a male JIC end and a male BSPP end.

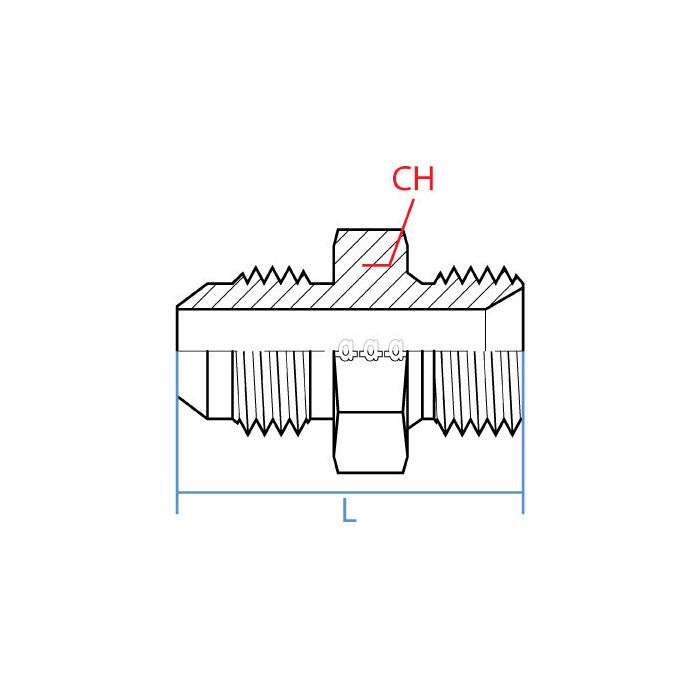

The Adaptall 9005-04-06 Male JIC X Male BSPP adapter has a 1/4" Side 1 JIC end with 7/16 - 20 UNF callout, and a 3/8" Side 2 BSPP end with G 3/8 - 19 callout. The Adaptall Ch Width is 22mm and the Adaptall L Length is 34.2mm.

SKU: 9005-04-06

Supplier Part Number (MPN): 9005-04-06

Specifications

Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
34 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
3/8-19 x 7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rod W on Sep 4, 2025, 2:38 PM
Got a piece of equipment running BSPP fittings on one end and JIC on the other, will this adapter bridge that gap straight through without needing extra pieces in between?
Answer by: Customer Support on Sep 6, 2025, 6:32 AM
That's what this one does. One end is 1/4" JIC with a 7/16-20 UNF thread, and the other is 3/8" BSPP running a G 3/8-19 thread. Both ends are male, so you're connecting it directly between two female ports. No extra union or coupler needed, just a single straight adapter doing the conversion in one shot.
