Male Jic X Male Bspp

Description & Features

A straight steel adapter connecting a 1/4" Male JIC (7/16-20 UNF) fitting on one end to a 1/2" Male BSPP (G 1/2-14) fitting on the other, this Male JIC X Male BSPP from Adaptall is designed for use in hydraulic systems where JIC and BSPP threaded connections need to be joined inline. The straight configuration keeps routing clean and direct.

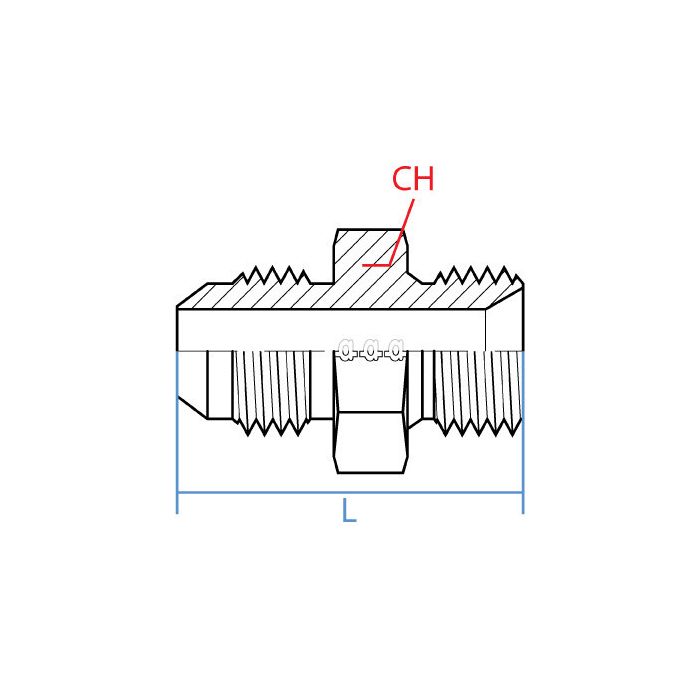

Manufactured from steel, the adapter measures 37.2mm in length with a 27mm CH (across flats) wrench width, making it compatible with standard industrial tooling. It is well-suited for hydraulic circuits that span equipment built to different threading standards, common in mixed-fleet or internationally sourced machinery environments.

SKU: 9005-04-08

Supplier Part Number (MPN): 9005-04-08

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 36 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9005 Series	Thread Size 7/16-20, 1/2-14

Product Questions & Answers (3)

Question by: Steve J on Mar 5, 2026, 8:46 AM

Will this here fitting hold up okay in a hydraulic system running about 2500 PSI?

Answer by: Customer Support on Mar 6, 2026, 9:22 PM

This adapter is made from steel, so it should handle that pressure without any problems under normal hydraulic conditions.

Question by: Sheila C on Oct 20, 2025, 12:24 PM

Got a piece of equipment running BSPP ports and my hydraulic lines are all JIC, this the kind of adapter that bridges that gap inline without needing extra fittings?

Answer by: Customer Support on Oct 22, 2025, 7:41 AM

That's what it's built for. One end is 1/4" Male JIC on a 7/16-20 UNF thread, the other is 1/2" Male BSPP on a G 1/2-14 thread. Steel construction, straight body, so it keeps your line routing clean without adding bends or bulk. Common situation on mixed fleets or equipment that came in from overseas with BSPP ports already built in.

Question by: Judy M on Mar 2, 2026, 6:54 AM

trying to hook a 1/4 jic hose end to a port thats g 1/2-14, is this the right adapter?

Answer by: Customer Support on Mar 3, 2026, 11:56 AM

For tying those two thread standards together inline, it matches a 1/4 inch Male JIC on one side with 7/16-20 UNF threads and a 1/2 inch Male BSPP on the other with G 1/2-14 threads.
