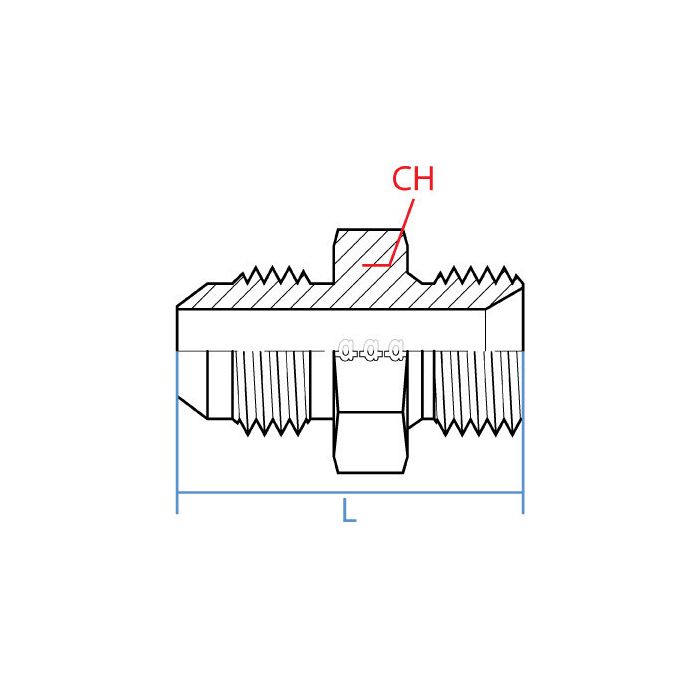

main product photo

Male Jic X Male Bspp

Ask A Question

Description & Features

Designed with precision, the Adaptall Male JIC x Male BSPP adaptor ensures reliable connections in hydraulic systems. This straight connector features a 7/16 - 20 UNF male JIC on one end and a G 3/4 - 14 male BSPP on the other, making it ideal for systems requiring a seamless transition between these thread types. With a steel construction, it offers robust performance and durability, even under demanding conditions.

The Male JIC x Male BSPP adaptor measures 41.3mm in length with a width of 32mm, providing a compact yet sturdy solution for your hydraulic needs. Its compatibility with standard fittings makes it a versatile choice for various industrial applications. Choose this adaptor for dependable performance where precision and reliability are paramount.

SKU: 9005-04-12

Supplier Part Number (MPN): 9005-04-12

Specifications

Connection Size 1
1/4 in
Connection Size 2
3/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
41.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
7/16-20 x 3/4-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Patty T on Apr 8, 2025, 4:53 PM
trying to hook a jic hose to a bspp port, is this the straight adaptor that does that?
Answer by: Customer Support on Apr 9, 2025, 6:53 PM
For connecting those two thread styles, it bridges a 7/16-20 UNF male JIC end to a G 3/4-14 male BSPP end in a straight adaptor body.
Question by: Duane C on Dec 9, 2025, 3:28 PM
Got a hydraulic line running 3/4 BSPP on one end and need to tie into a 1/4 inch JIC fitting on the other, this the right piece for that?
Answer by: Customer Support on Dec 11, 2025, 7:49 AM
Yeah, that's exactly what this adaptor is built for. One end is a 7/16-20 UNF male JIC, which corresponds to a 1/4 inch JIC line size, and the other end is a G 3/4-14 male BSPP. Both ends are male, so you'll need female ports or swivel nuts on both sides of wherever this gets installed. Steel construction keeps it solid under the kind of pressure and vibration most hydraulic systems throw at fittings like this.
