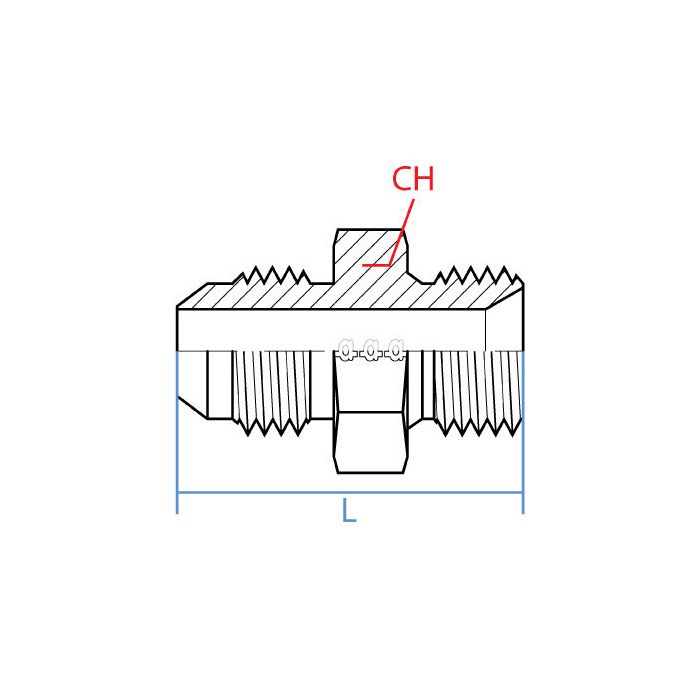

main product photo

Male Jic X Male Bspp

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall adapter connects a 5/16" Male JIC fitting (1/2-20 UNF thread) on one end to a 3/8" Male BSPP fitting (G 3/8-19 thread) on the other. The Male JIC X Male BSPP design allows direct connection between JIC and BSPP threaded ports, making it well suited for hydraulic systems where these two thread standards must interface.

With an overall length of 33.9mm and a wrench width of 22mm, this compact straight adapter fits standard tooling and is easy to install in tight spaces. Steel construction provides durability in demanding hydraulic service environments.

SKU: 9005-05-06

Supplier Part Number (MPN): 9005-05-06

Specifications

Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
34 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
1/2-20 x 3/8-19

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Steve F on Mar 10, 2026, 3:42 PM
got a hose with a 5/16 jic male and the port i need to hit is 3/8 bspp, is this the right little adapter
Answer by: Customer Support on Mar 12, 2026, 6:26 AM
For tying those two thread standards together, that is exactly what this adapter is built for. One end is a 5/16 inch Male JIC with 1/2-20 UNF threads, and the other end is a 3/8 inch Male BSPP with G 3/8-19 threads.
