Male Jic X Male Bspp

Ask A Question

Description & Features

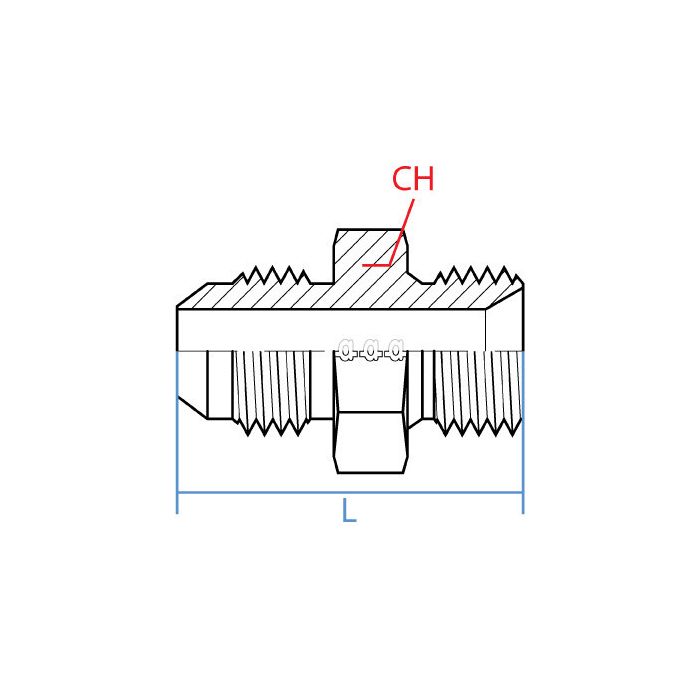

This straight Adaptall fitting connects male JIC and male BSPP threaded ports. The JIC side features a 9/16 - 18 UNF thread, equivalent to a 3/8" size. The BSPP side features a G 1/2 - 14 thread, equivalent to a 1/2" size.

Constructed of durable steel, this Male JIC X Male BSPP adapter has a total length of 38.1mm, with a 27mm wrench flat.

SKU: 9005-06-08

Supplier Part Number (MPN): 9005-06-08

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
38 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Shawn F on May 10, 2025, 8:40 PM
got a piece of equipment with a JIC port on one end and a BSPP port on the other, this the kind of adapter that'd bridge them two together?
Answer by: Customer Support on May 12, 2025, 6:05 AM
That's what this one's built for. One end is a 9/16-18 UNF male JIC thread, which corresponds to a 3/8" JIC size. The other end is a G 1/2-14 male BSPP thread, the 1/2" size. Both sides are male, so you'd be threading each end into a female port on your respective components. Straight configuration, no bends or offsets, so it works best where your ports are already lined up.
