Male Jic X Male Bspp

Description & Features

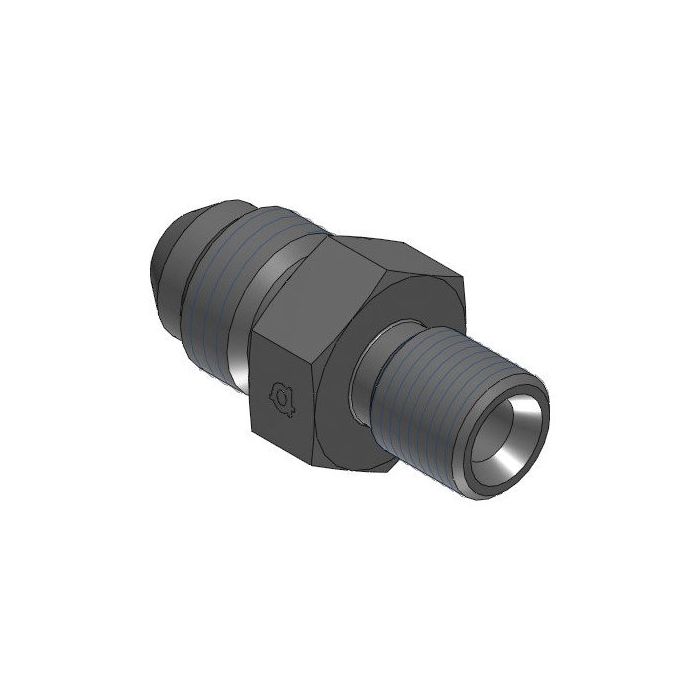

This steel Adaptall fitting is a straight Male JIC x Male BSPP adapter.

The JIC male side has a 9/16 - 18 UNF thread with a 3/8" size, while the BSPP male side features a G 5/8 - 14 thread with a 5/8" size. The Adaptall Ch Width is 30mm and the Adaptall L Length is 39.9mm.

SKU: 9005-06-10

Supplier Part Number (MPN): 9005-06-10

Specifications

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 5/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 40.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9005 Series	Thread Size 9/16-18 x 5/8-14

Product Questions & Answers (1)

Question by: Lynn H on Jul 25, 2025, 9:47 PM

what thread's on the JIC side of this fitting, and is it a standard size I'd find on most hydraulic lines?

Answer by: Customer Support on Jul 27, 2025, 11:13 AM

The JIC male end runs a 9/16-18 UNF thread, which corresponds to a 3/8" JIC size. That's a common size in hydraulic hydraulic connections, so it pairs up with standard 3/8" JIC hose ends and fittings without any trouble.
