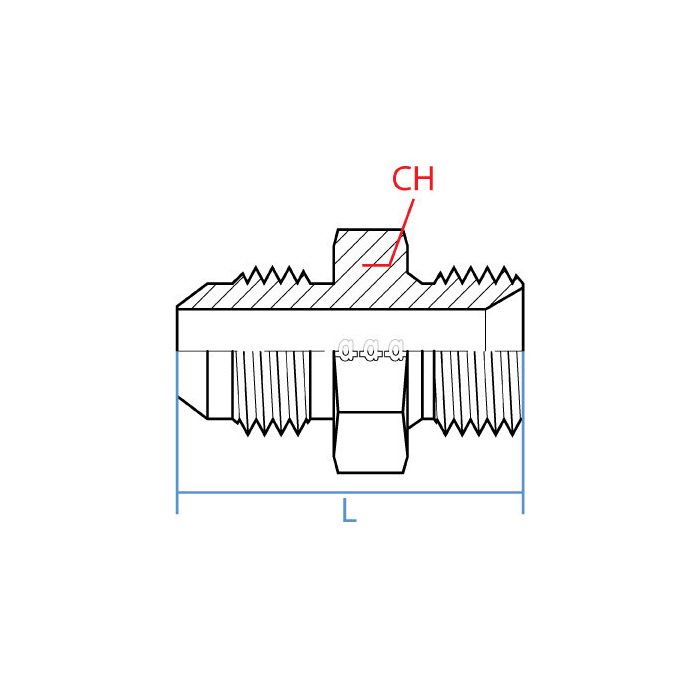

main product photo

Male Jic X Male Bspp

Ask A Question

Description & Features

This straight steel adapter fitting features a male JIC (3/4 - 16 UNF) connection on one side and a male BSPP (G 1 - 11) connection on the other.

The Adaptall Male JIC X Male BSPP adapter has a Side 1 size of 1/2" and Side 2 size of 1". The Adaptall wrench flat measures 41mm and has a total length of 46.1mm.

SKU: 9005-08-16

Supplier Part Number (MPN): 9005-08-16

Specifications

Connection Size 1
1/2 in
Connection Size 2
1 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
46 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
3/4-16 x 1-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Larry H on May 27, 2025, 3:23 PM
Got a machine running BSPP fittings on the hydraulic block and need to tie into a JIC line, this straight adapter do that job in one piece?
Answer by: Customer Support on May 28, 2025, 4:30 PM
That's what it's built for. One end is male JIC at 3/4-16 UNF, which covers a 1/2" JIC line, and the other end is male BSPP at G 1-11, which is your 1" BSPP port size. Steel construction, straight configuration, so you're connecting those two thread standards without any extra fittings or adapters in between.
