Male Jic X Male Bspp

Description & Features

Constructed from steel in a straight configuration, this adapter provides a reliable transition between 7/8-14 UNF JIC and G 3/8-19 BSPP threaded connections. The Male JIC X Male BSPP fitting from Adaptall is suited for hydraulic line assemblies where JIC and British Standard Parallel Pipe thread standards must be joined without additional fittings.

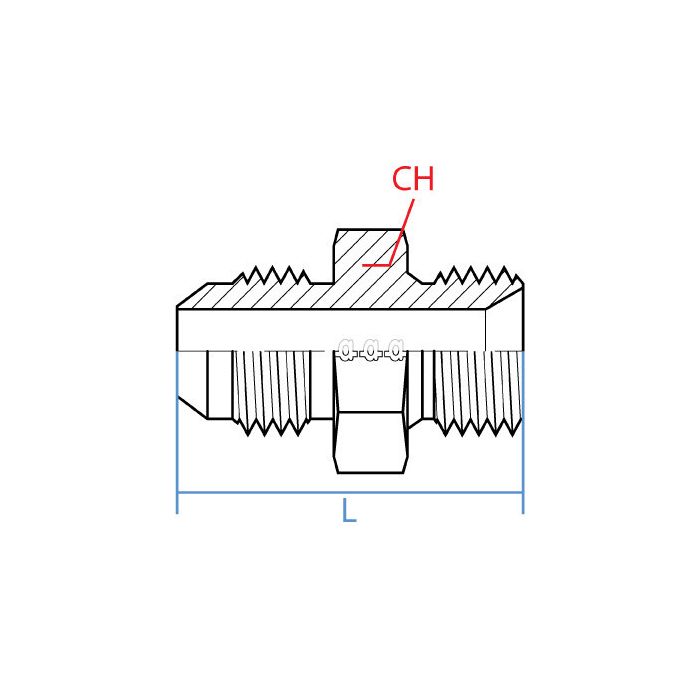

With an overall length of 39.9mm and a wrench width of 25.5mm, the adapter is compact enough for installations where space is a consideration. The 5/8" JIC side mates with 7/8-14 UNF threads, while the 3/8" BSPP side carries a G 3/8-19 thread form, covering a common cross-standard connection requirement found in mixed hydraulic systems.

SKU: 9005-10-06

Supplier Part Number (MPN): 9005-10-06

Specifications

Connection Size 1 5/8 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 40 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9005 Series	Thread Size 7/8-14 x 3/8-19

Product Questions & Answers (1)

Question by: Danny F on May 9, 2025, 7:10 AM

Got a piece of equipment running BSPP fittings and need to tie it into a JIC line, this a straight shot or is there some kind of reducer situation going on with the sizes?

Answer by: Customer Support on May 10, 2025, 7:36 AM

Both ends are male, and the connection goes straight through with no reduction in the middle. One side is 5/8" JIC with a 7/8-14 UNF thread, and the other is 3/8" BSPP on a G 3/8-19 thread form. It's a direct adapter built to bridge those two thread standards in one compact piece, no extra fittings needed.
