Male Jic X Male Bspp

Ask A Question

Description & Features

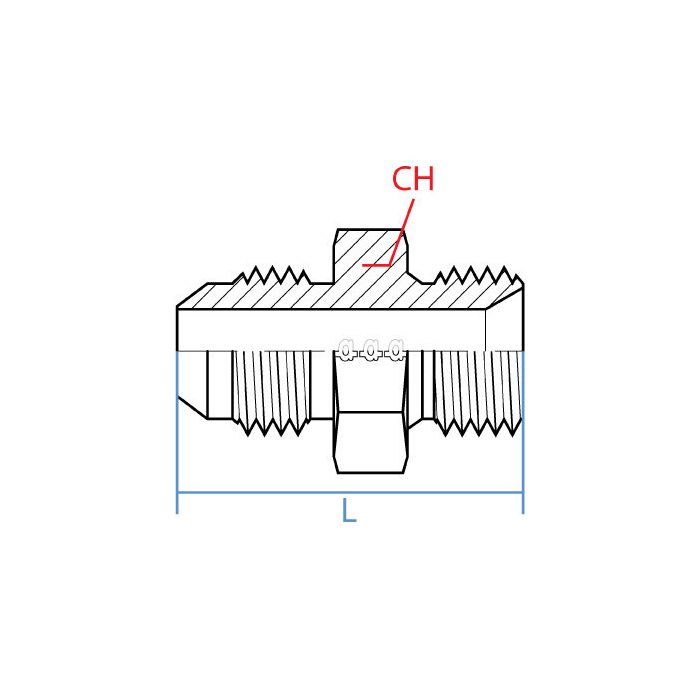

Constructed from steel in a straight configuration, this adapter connects a 5/8" JIC male fitting (7/8-14 UNF thread) to a 1/2" BSPP male fitting (G 1/2-14 thread), making it a practical solution for bridging JIC and BSPP hydraulic connections in a single inline component. Overall length is 44mm with a 27mm CH width across the hex.

The Male JIC X Male BSPP adapter is manufactured by Adaptall, a recognized supplier of hydraulic adapters and fittings. The straight body design keeps the connection compact and aligned, suited for use in hydraulic circuits where JIC and BSPP thread standards must interface directly.

SKU: 9005-10-08

Supplier Part Number (MPN): 9005-10-08

Specifications

Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
43.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Darryl M on Dec 23, 2025, 8:13 PM
Got a piece of equipment running a BSPP port and my hydraulic line terminates in a JIC fitting, does this adapter go between them without needing any extra pieces?
Answer by: Customer Support on Dec 25, 2025, 10:14 AM
That's exactly what it's built for. One end is a 7/8-14 UNF JIC male thread in the 5/8" size, and the other is a G 1/2-14 BSPP male thread. Both ends are male, so you're threading each side directly into its matching female port or coupling. No additional pieces needed for that connection. The straight body keeps everything inline at 44mm total length, which helps in tighter spots where a bulkier adapter wouldn't fit clean.
Question by: Donna T on Apr 3, 2026, 5:32 PM
trying to hook a 5/8 jic line to a 1/2 bspp port, is this the right adapter?
Answer by: Customer Support on Apr 5, 2026, 6:41 AM
Match the thread callouts and it lines up: one side is a 5/8 inch JIC male with 7/8-14 UNF threads, and the other side is a 1/2 inch BSPP male with G 1/2-14 threads.
