Male Jic X Male Bspp

Description & Features

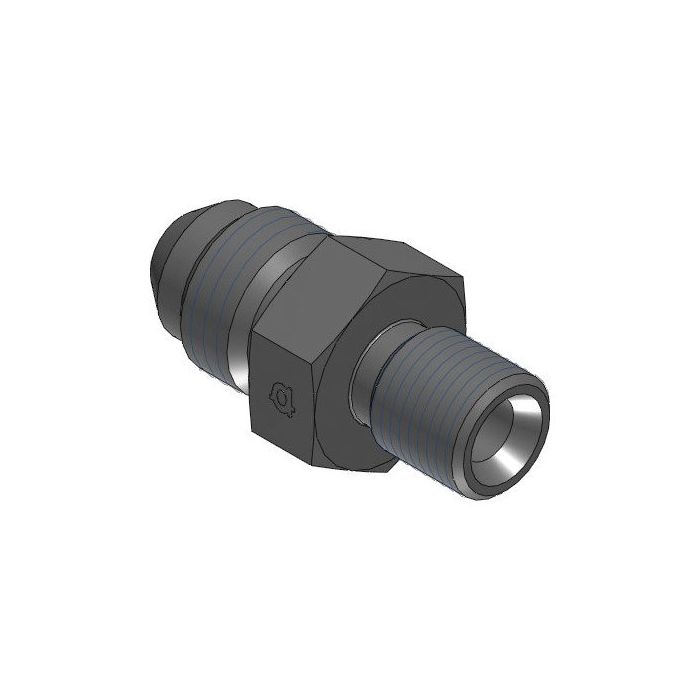

This steel straight adapter features a 3/4" male JIC end and a 1/2" male BSPP end.

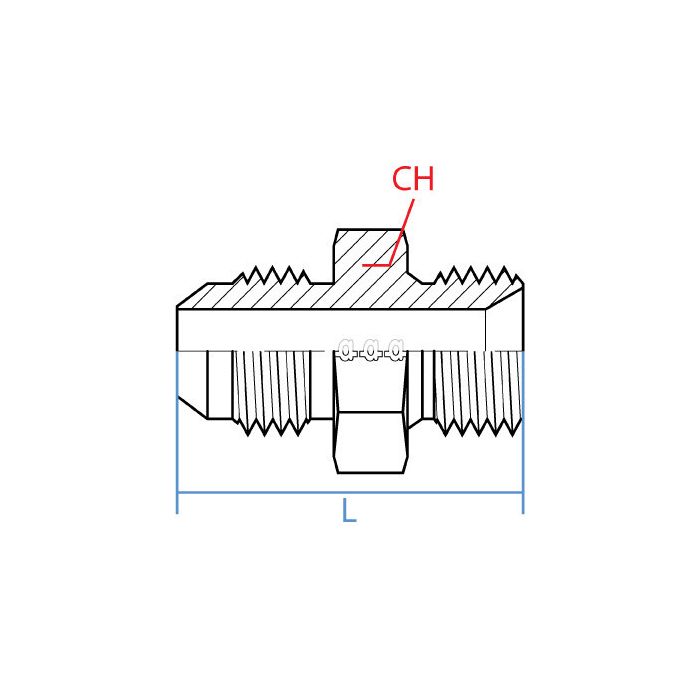

The Adaptall Male JIC X Male BSPP adapter has a Side 1 callout of 1-1/16 - 12 UN and Side 2 callout of G 1/2 - 14. This fitting has an Adaptall Ch Width of 28.5mm and an Adaptall L Length of 47.6mm.

SKU: 9005-12-08

Supplier Part Number (MPN): 9005-12-08

Specifications

Brand adapt-all	Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 47 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 28 mm	Material Steel	Material Construction Carbon Steel	Series 9005 Series	Thread Size 1-1/16-12 x 1/2-14

Product Questions & Answers (1)

Question by: Ross P on Nov 23, 2025, 9:06 PM

trying to swap a line over, is this adapter 3/4 JIC male on one side and 1/2 BSPP male on the other?

Answer by: Customer Support on Nov 25, 2025, 6:53 AM

You are looking at a straight steel adapter with a 3/4 inch male JIC end (1-1/16 - 12 UN) on Side 1 and a 1/2 inch male BSPP end (G 1/2 - 14) on Side 2.
