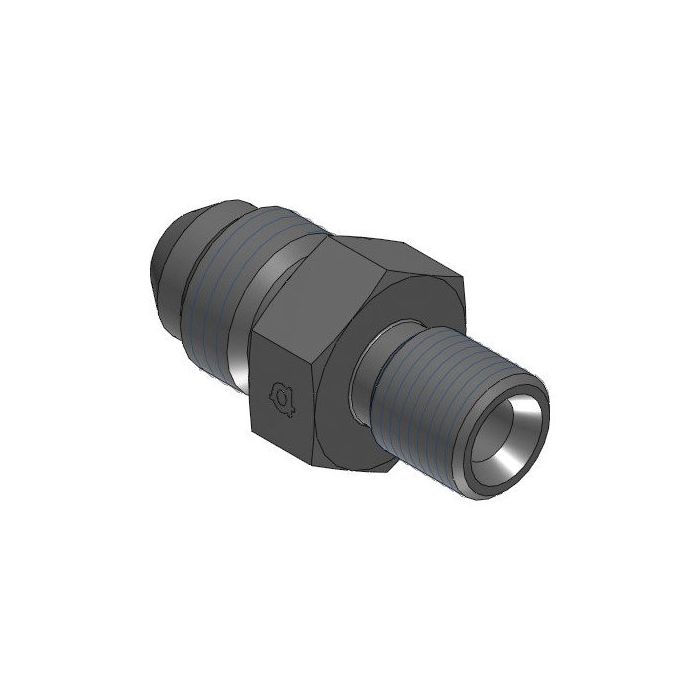

main product photo

Male Jic X Male Bspp

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this straight adapter connects a 3/4" Male JIC fitting (1-1/16-12 UN thread) on one end to a 5/8" Male BSPP fitting (G 5/8-14 thread) on the other. It is designed to bridge JIC and BSPP hydraulic circuits where these two thread standards meet within the same system.

The Male JIC X Male BSPP adapter is an Adaptall product, measuring 49.8mm in length with a 30mm CH width. Steel construction makes it suitable for demanding hydraulic applications where reliable thread engagement and a durable adapter body are required.

SKU: 9005-12-10

Supplier Part Number (MPN): 9005-12-10

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
48.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
28 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
5/8-14 x 1-1/16-12

Product Questions & Answers (3)

Question by: Kirk C on Dec 19, 2025, 7:39 PM
Will this here adapter fit right with my existing JIC and BSPP lines? I got a 3/4" JIC and a 5/8" BSPP.
Answer by: Customer Support on Dec 21, 2025, 10:43 AM
This adapter's designed to connect a 3/4" Male JIC fitting (1-1/16-12 UN thread) to a 5/8" Male BSPP fitting (G 5/8-14 thread), so it should work just fine for what you're describing. Just make sure your lines are male fittings.
Question by: Dale W on Aug 23, 2025, 7:35 PM
trying to tie a 3/4 male JIC hose end into a BSPP port, is this the right adapter?
Answer by: Customer Support on Aug 25, 2025, 10:14 AM
For bridging those two thread styles, it matches a 3/4 inch Male JIC on one side with a 1-1/16-12 UN thread, and a 5/8 inch Male BSPP on the other with a G 5/8-14 thread. It is a straight steel adapter meant for systems where JIC and BSPP have to meet.
Question by: Jean H on May 27, 2025, 8:13 PM
Got a piece of equipment running JIC lines that needs to tie into a BSPP port, this the kind of adapter that'd handle that crossover?
Answer by: Customer Support on May 29, 2025, 5:41 PM
That's what this one's built for. One end threads into a 3/4" JIC fitting using a 1-1/16-12 UN thread, and the other end steps over to a 5/8" BSPP port with a G 5/8-14 thread. Steel construction, straight configuration, so it's a solid choice anywhere you're bridging those two thread standards in a hydraulic circuit.
