Male Jic X Male Bspp

Description & Features

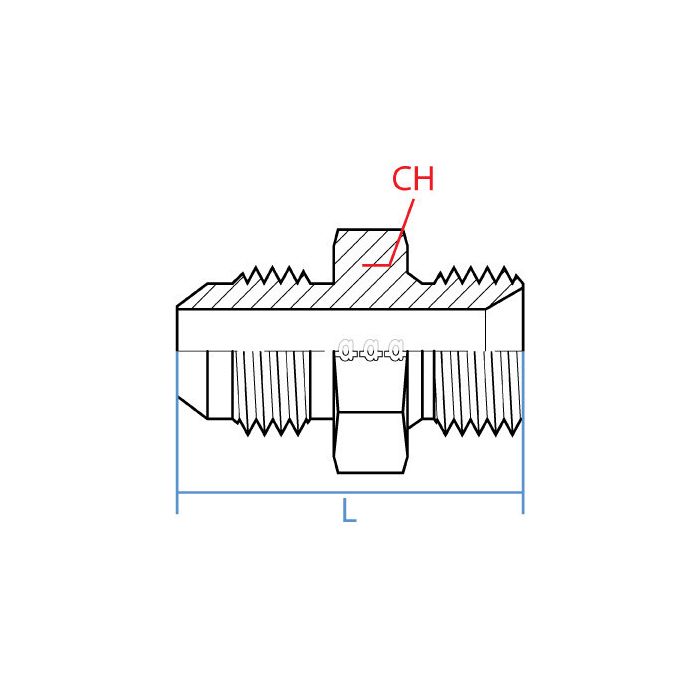

Constructed from steel in a straight configuration, this adapter connects a 1-1/4" Male JIC (1-5/8-12 UN thread) on one end to a 3/4" Male BSPP (G 3/4-14 thread) on the other, making it a practical solution for joining JIC and BSPP hydraulic circuits in a single inline fitting. The Male JIC X Male BSPP measures 57.5mm in length with a 44.5mm wrench width, providing a compact, serviceable form factor suited to tight installations.

Manufactured by Adaptall, this fitting is well-suited for cross-standard hydraulic assemblies where inch-series JIC connections must interface with BSP parallel-thread ports. The steel construction offers durability in demanding industrial hydraulic environments.

SKU: 9005-20-12

Supplier Part Number (MPN): 9005-20-12

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 3/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 54 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9005 Series	Thread Size 1-5/8-12 x 3/4-14

Product Questions & Answers (1)

Question by: Glen S on Jul 2, 2025, 9:57 AM

trying to mate a 1-1/4 JIC hose end to a port that’s G 3/4, is this the right adapter?

Answer by: Customer Support on Jul 3, 2025, 11:34 AM

For tying those two thread standards together inline, it matches a 1-1/4 inch Male JIC with 1-5/8-12 UN threads on one side and a 3/4 inch Male BSPP with G 3/4-14 threads on the other.
