Male Jic X Male Bspp

Ask A Question

Description & Features

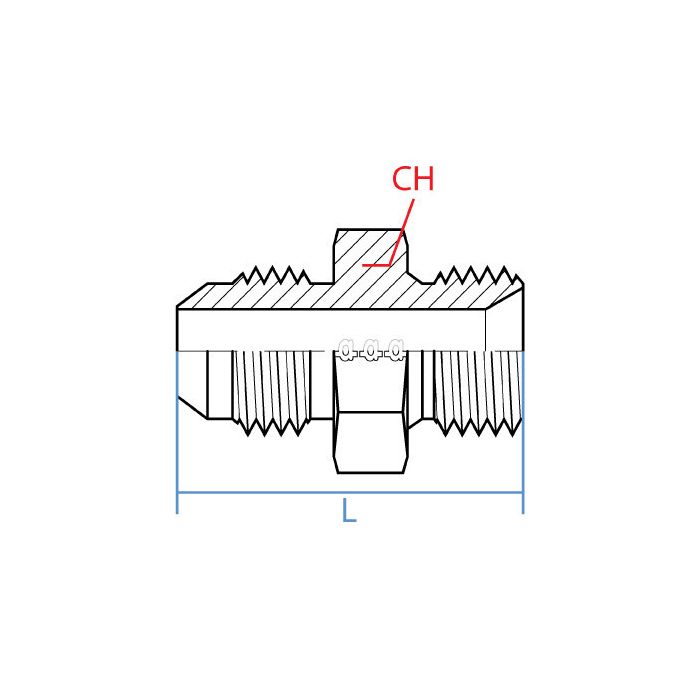

Constructed from steel in a straight configuration, this adapter connects a 1-1/4" Male JIC fitting (1-5/8-12 UN thread) to a 1" Male BSPP fitting (G 1-11 thread), bridging two widely used hydraulic thread standards in a single compact component. The Male JIC x Male BSPP measures 59.7mm in length with a 44.5mm wrench width, making it straightforward to install and torque correctly in tight assemblies.

Manufactured by Adaptall, the adapter is suited for hydraulic circuits where JIC and BSPP connections must interface, commonly found in mixed-standard equipment, imported machinery, or systems integrating components from different regional specifications. Steel construction provides the durability expected in pressurized hydraulic lines.

SKU: 9005-20-16

Supplier Part Number (MPN): 9005-20-16

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
60 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
1-5/8-12 x 1-11

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Travis R on Jan 19, 2026, 8:00 AM
Will this adapter hold up okay in a hydraulic system that runs pretty hot?
Answer by: Customer Support on Jan 20, 2026, 2:32 PM
Steel construction provides the durability needed in pressurized hydraulic lines, including systems where higher temperatures are present.
Question by: Debbie H on May 14, 2025, 6:02 AM
got a hose end that’s 1-1/4 JIC, and the other side of my setup is 1" BSPP. is this the right adapter to tie those together?
Answer by: Customer Support on May 15, 2025, 2:11 PM
Built for exactly that mix, it connects a 1-1/4 inch Male JIC with 1-5/8-12 UN threads to a 1 inch Male BSPP with G 1-11 threads, in a straight steel adapter.
Question by: Tommy P on Jan 27, 2026, 7:43 PM
Got a piece of imported equipment with a 1" BSPP port and the hydraulic line coming off it is JIC, does this adapter go between those two directly, or do I need something else in the middle?
Answer by: Customer Support on Jan 29, 2026, 6:45 AM
That's exactly what this one handles. One end is 1-1/4" Male JIC on a 1-5/8-12 UN thread, and the other end is 1" Male BSPP on a G 1-11 thread. Both sides are male, so you'd be threading each end into its respective female port on your line and your equipment. No additional fittings needed to bridge those two standards, it goes straight from one to the other in a single piece.
