Male Jic X Male Bspp

Description & Features

This straight Adaptall fitting connects male JIC and male BSPP threads. It features a 1-1/4" JIC side with 1-5/8 - 12 UN callout and a 1-1/2" BSPP side with G 1-1/2 - 11 callout. The Male Jic X Male Bspp is constructed from durable steel.

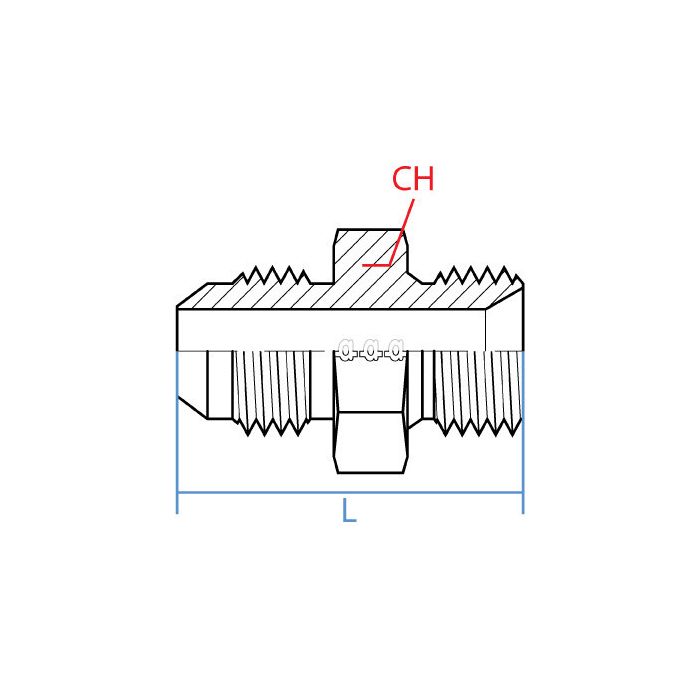

With a length of 60.2mm and a wrench flat of 54mm, this fitting is suitable for a variety of hydraulic applications.

SKU: 9005-20-24

Supplier Part Number (MPN): 9005-20-24

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 58 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 55 mm	Material Steel	Material Construction Carbon Steel	Series 9005 Series	Thread Size 1-5/8-12 x 1-1/2-11

Product Questions & Answers (1)

Question by: Troy M on Sep 2, 2025, 8:43 PM

Got a system running British fittings on one end and JIC on the other, does this adapter actually go male to male, or is one side a female connection?

Answer by: Customer Support on Sep 4, 2025, 8:15 AM

Both ends are male on this one. One side is a 1-1/4" JIC thread with a 1-5/8-12 UN callout, and the other is a 1-1/2" BSPP with a G 1-1/2-11 callout. So you'd need female receivers on both ends of whatever you're connecting it to. Straight configuration, no bends or offsets.
