Male Jic X Male Bspp

Ask A Question

Description & Features

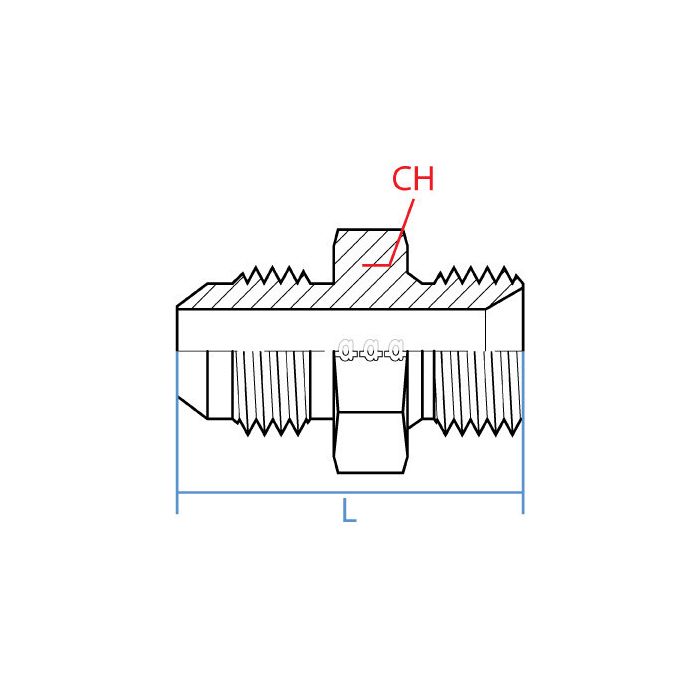

Constructed from steel in a straight configuration, this 1-1/2" adapter bridges JIC and BSPP connection standards in a single compact fitting. Side one presents a male JIC 37° flare thread (1-7/8–12 UN), while side two carries a male BSPP parallel thread (G 1-1/2–11), making it a practical solution for hydraulic circuits that combine SAE and ISO-standard components.

The Male Jic X Male Bspp adapter from Adaptall measures 61.9 mm in length with a 55 mm wrench width, providing adequate tool engagement during installation. Both sides share a 1-1/2" nominal size, ensuring a matched flow path across the connection. Steel construction supports use in demanding hydraulic applications where durability and thread integrity are essential.

SKU: 9005-24-24

Supplier Part Number (MPN): 9005-24-24

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005 Series
Thread Size
1-7/8-12 x G1-1/2-11

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Kent B on Apr 5, 2026, 8:46 PM
trying to tie a jic hose end into a bspp port. is this the right adapter for that?
Answer by: Customer Support on Apr 7, 2026, 6:40 AM
For connecting mixed standards, it gives you a male JIC 37 degree flare on one side and a male BSPP parallel thread on the other. Both ends are 1-1/2 inch nominal, with the JIC thread called out as 1-7/8-12 UN and the BSPP side as G 1-1/2-11.
Question by: Cindy A on Nov 3, 2025, 9:52 AM
Both sides are male on this thing, right? Just want to make sure before I go trying to thread it into two female ports on my manifold setup.
Answer by: Customer Support on Nov 5, 2025, 6:39 AM
Correct, both ends are male. One side carries a male JIC 37-degree flare thread sized at 1-7/8-12 UN, and the other is a male BSPP parallel thread at G 1-1/2-11. So you'd need a female JIC port on one end and a female BSPP port on the other to make up the connection properly.
