Male Jic X Male Bspp

Description & Features

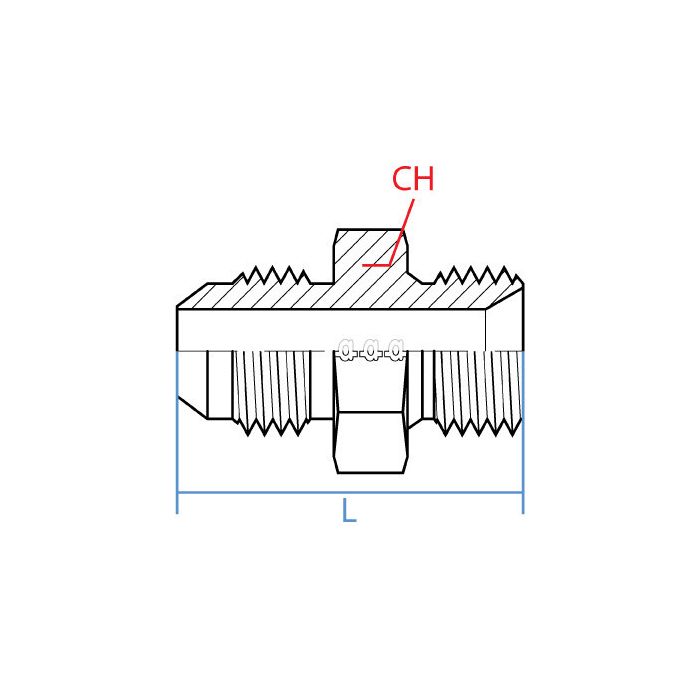

This straight steel adapter features a 2" male JIC end and a 2" male Bspp end. The Adaptall Ch Width is 70mm and Adaptall L Length is 76mm.

This Male Jic X Male Bspp adapter has a Side 1 Callout of 2-1/2 - 12 UN and a Side 2 Callout of G 2 - 11.

SKU: 9005-32-32

Supplier Part Number (MPN): 9005-32-32

Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 78 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9005 Series	Thread Size 2-1/2-12 x 2-11

Question by: Dwayne F on Jan 19, 2026, 10:37 AM

got a hose with a 2" JIC male on it, will this adapter mate up right on that end?

Answer by: Customer Support on Jan 20, 2026, 9:43 PM

Fit-wise, Side 1 is a 2 inch male JIC with a 2-1/2 - 12 UN thread callout, so it matches up to a connection that takes that JIC thread and size.

Question by: Steve H on May 30, 2025, 6:29 PM

Will this here fitting hold up okay if I'm usin' it for hydraulics on farm equipment?

Answer by: Customer Support on May 31, 2025, 9:09 PM

This straight steel adapter is built to handle hydraulic applications.
