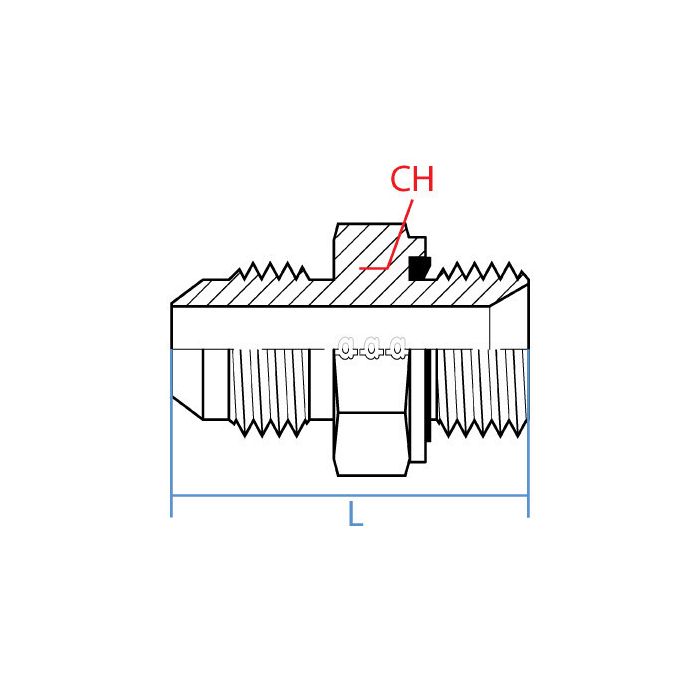

main product photo

Mjic-Mbspp Elastomeric Sealed

Ask A Question

Description & Features

The Mjic-Mbspp Elastomeric Sealed by Adaptall America is a highly durable steel connector designed for industrial applications requiring a reliable seal. Engineered with a straight shape this fitting features a 9/16-18 UNF male JIC on one end and a G 1/2-14 male BSPP on the other providing excellent compatibility and performance in various settings.

With a CH width of 27mm and an overall length of 39.6mm this connector is designed to meet precise specifications for optimal functionality. The elastomeric seal ensures a secure and leak-proof connection enhancing the overall integrity of the system.

This product does not include additional features such as adjustability battery blades calibration case or check valve. It is not color-coded diode-equipped electrically flagged machine mountable mandrel required ratcheting remote-controlled or switch connected. There is no thread sealant provided.

Supplier Part Number: 9005ES-06-08

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
40 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005ES Series
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Roy M on Dec 29, 2025, 3:00 PM
trying to connect a JIC line to a BSPP port and keep running into leaks with other fittings. this one use some kind of seal built in or is it just metal-to-metal?
Answer by: Customer Support on Dec 31, 2025, 9:35 AM
The elastomeric seal is built right into the fitting, so you get a proper sealed connection between the JIC side and the BSPP port without relying on metal-to-metal contact alone. That seal is what sets this version apart from a standard adapter and is specifically what addresses the leak problems that come up when bridging those two thread types. The JIC end runs 9/16-18 UNF male and the BSPP end is G 1/2-14 male, so as long as your ports match up, the sealing is handled by the fitting itself.
