Mjic-Mbspp Elastomeric Sealed

Ask A Question

Description & Features

The Mjic-Mbspp Elastomeric Sealed fitting designed by Adaptall America features a robust steel construction for reliable performance in demanding environments. This straight adapter ensures secure connections with a 3/4 - 16 UNF male JIC on one end and a G 1/2 - 14 male BSPP on the other.

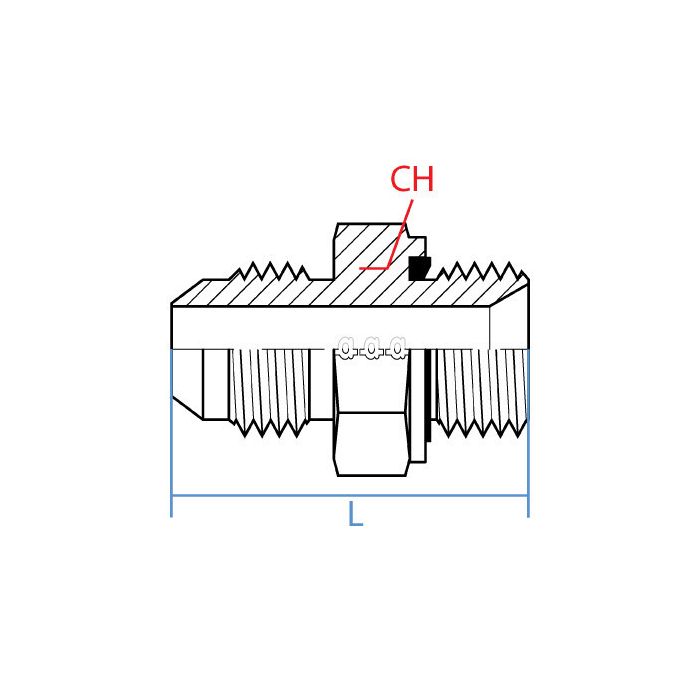

With a CH width of 27mm and a length of 42mm this precision-crafted fitting is engineered to meet stringent industry standards. Its elastomeric sealing mechanism effectively prevents leaks delivering dependable functionality in various industrial applications.

Key attributes such as its non-adjustable non-calibrated design and lack of additional components like batteries blades or diodes ensure straightforward integration into existing setups. Color coding ratcheting and other features are not included emphasizing its simplicity and utility.

MPN: 9005ES-08-08

Supplier Part Number: 9005ES-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
42 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005ES Series
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kurt F on Jan 18, 2026, 8:05 PM
got a piece of equipment running JIC on the hydraulic line but the manifold block on the other end is BSPP, will this adapter work to bridge those two?
Answer by: Customer Support on Jan 20, 2026, 8:04 AM
That's exactly the use case this fitting covers. One end is a 3/4-16 UNF male JIC and the other is a G 1/2-14 male BSPP, so it connects a JIC line directly to a BSPP port without any intermediate pieces. Both sides are 1/2 inch nominal size, and the elastomeric seal on the BSPP end handles the sealing duty so you're not relying on thread engagement alone to stop leaks.
