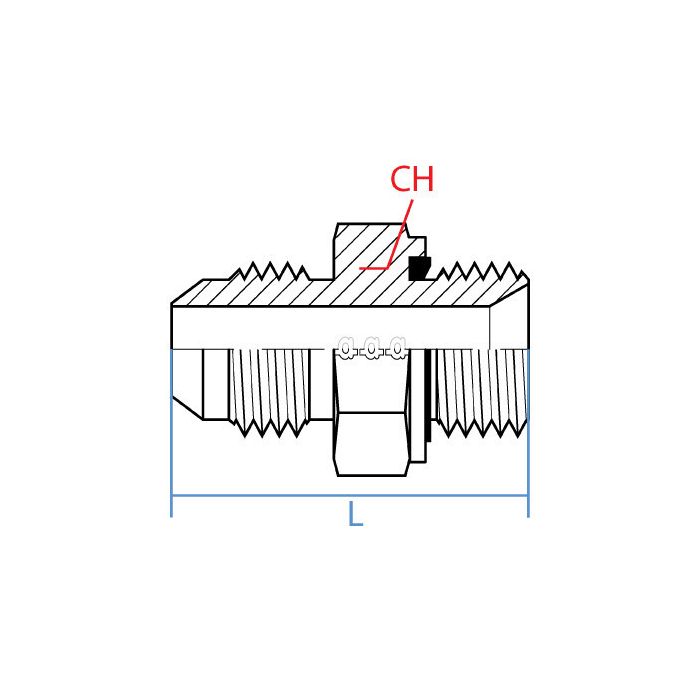

Mjic-Mbspp Elastomeric Sealed

Ask A Question

Description & Features

This product is crafted from high-quality steel ensuring durability and reliable performance in demanding environments. The Mjic-Mbspp Elastomeric Sealed fitting features a straight shape for seamless integration and secure connections in industrial applications.

With its 1-1/16 - 12 UN male JIC side and G 1/2 - 14 male BSPP side this component is designed to facilitate precise and robust connections. The dimensions include a width of 27mm and a length of 49mm making it a versatile choice for various setups.

Constructed without the need for additional adjustment or thread sealant this fitting offers a straightforward installation process. The absence of additional components like blades a check valve or electrical elements ensures a streamlined and efficient functionality.

Supplier Part Number: 9005ES-12-08

Specifications

Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
49 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005ES Series
Thread Size
1-1/16-12 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Merle W on Sep 6, 2025, 1:20 PM
Got a machine running G 1/2 BSPP ports and need to tie into a JIC line, this the right adapter for that?
Answer by: Customer Support on Sep 8, 2025, 7:31 AM
That's what this fitting handles. One end is a 3/4" male JIC with a 1-1/16-12 UN thread, and the other is a 1/2" male BSPP at G 1/2-14. So if you've got a BSPP port on the equipment and a JIC hose end coming off the line, this bridges that gap straight through with no extra hardware needed.
