Mjic-Mbspp Elastomeric Sealed

Ask A Question

Description & Features

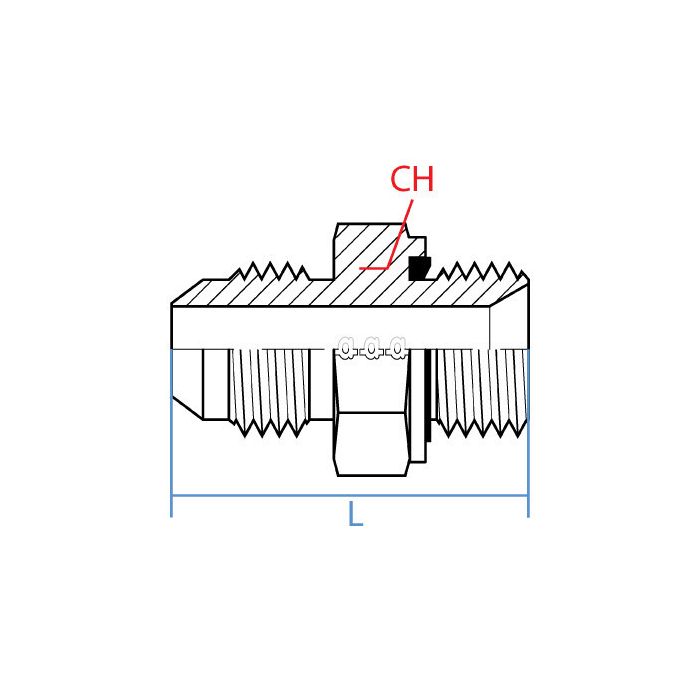

This straight Adaptall fitting features a male JIC end with a 1-5/8 - 12 UN callout and 1-1/4" size, paired with a male Bspp end with a G 1 - 11 callout and 1" size. The Mjic-Mbspp Elastomeric Sealed fitting is constructed from durable steel.

It measures 60.7mm in length, with a wrench flat size of 46mm.

SKU: 9005ES-20-16

Supplier Part Number (MPN): 9005ES-20-16

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
58.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9005ES Series
Thread Size
1-5/8-12 x 1-11

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Ricky K on Feb 10, 2026, 10:21 AM
Got a line running JIC on one end and BSPP on the other, does this fitting bridge that gap straight through without any reducer in between?
Answer by: Customer Support on Feb 11, 2026, 10:30 AM
That's what this one's built for. One end is male JIC at 1-5/8 - 12 UN thread, sized for 1-1/4 inch, and the other end is male BSPP at G 1 - 11, sized for 1 inch. Both ends are male, so you'd be threading into female JIC and female BSPP ports on your respective components. No reducer needed, no extra adapters stacking up in the middle.
Question by: Tony S on May 8, 2025, 4:13 PM
Will this fitting work for connecting something with a 1-5/8 - 12 UN thread to something with a G 1 - 11 thread?
Answer by: Customer Support on May 10, 2025, 8:02 AM
This fitting is designed to adapt between a 1-5/8 - 12 UN male JIC connection and a G 1 - 11 male BSPP connection. So yes, it will do that.
Question by: Rusty B on Oct 4, 2025, 12:28 PM
trying to match up a straight adapter, is this the one that goes from 1-5/8 - 12 UN JIC male to G 1 - 11 BSPP male?
Answer by: Customer Support on Oct 6, 2025, 7:39 AM
The ends on this adapter are male JIC on one side with a 1-5/8 - 12 UN callout and 1-1/4 inch size, and male BSPP on the other side with a G 1 - 11 callout and 1 inch size. It is a straight steel fitting.
