Mjic-Mbspp Elastomeric Sealed

Ask A Question

Description & Features

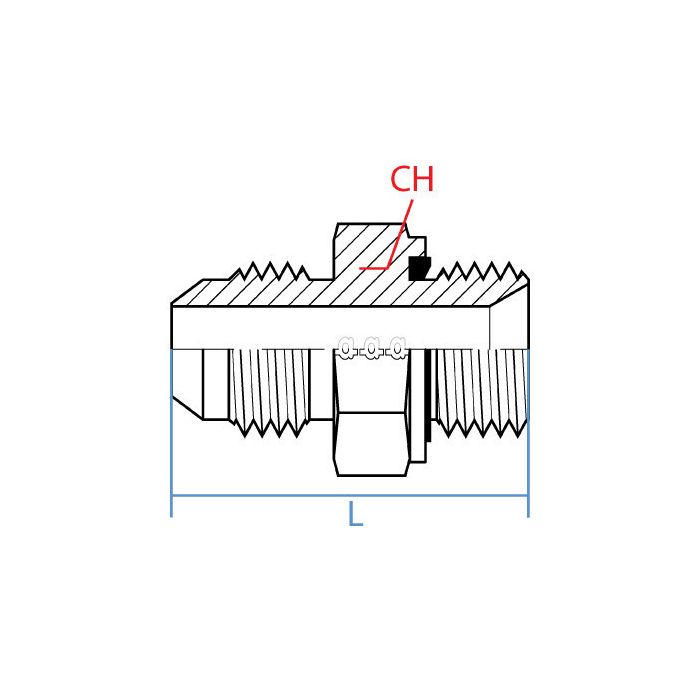

Designed for straight-through hydraulic connections between JIC and BSPP threaded ports, this steel adapter from Adaptall bridges a 1-1/2" male JIC fitting (1-7/8–12 UN thread) on one end to a 1-1/2" male BSPP port (G 1-1/2–11 thread) on the other. The elastomeric seal on the BSPP side provides a reliable, leak-resistant connection without the need for additional thread sealants or tape.

The Mjic-Mbspp Elastomeric Sealed adapter measures 66.9mm in length with a 54.5mm body width, making it a compact solution for tight installations. Steel construction suits demanding hydraulic environments where durability and dimensional consistency are essential. The straight configuration simplifies routing in applications where both port axes are already aligned.

SKU: 9005ES-24-24

Supplier Part Number (MPN): 9005ES-24-24

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
9005ES Series
Thread Size
1-7/8-12 x G1-1/2-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Norm C on Feb 6, 2026, 8:49 PM
Got a BSPP port on a piece of imported equipment and need to tie it into a JIC line, this a straight-through adapter or does it have some kind of angle to it?
Answer by: Customer Support on Feb 8, 2026, 1:06 PM
Straight through, no angle. Both ends run on the same axis, so if your JIC line and the BSPP port are already lined up, this drops right in without any routing gymnastics. The JIC side is 1-7/8-12 UN thread at 1-1/2 inch, and the BSPP side runs G 1-1/2-11. Steel construction, 66.9mm long with a 54.5mm body width, so it's on the compact side for what it does.
