Male Sae O-Ring Boss-Male Bspp

Description & Features

Designed for straight-line connections between SAE and BSP hydraulic circuits, this steel adapter features a 3/8" Male SAE O-Ring Boss thread (9/16-18 UNF) on one end and a 1/4" Male BSPP (G 1/4-19) thread on the other. The Male SAE O-Ring Boss-Male BSPP configuration makes it well suited for joining equipment with differing thread standards without the need for intermediate fittings.

Manufactured by Adaptall, the adapter is constructed from steel in a straight profile, with an overall length of 27.9mm and a 19mm wrench width. The ORB side provides a reliable seal via O-ring face contact, while the BSPP thread engages parallel BSP ports commonly found on European and international hydraulic components.

SKU: 9006-06-04

Supplier Part Number (MPN): 9006-06-04

Alternate Part Numbers: 3620-06-04, 9006-0604

Specifications

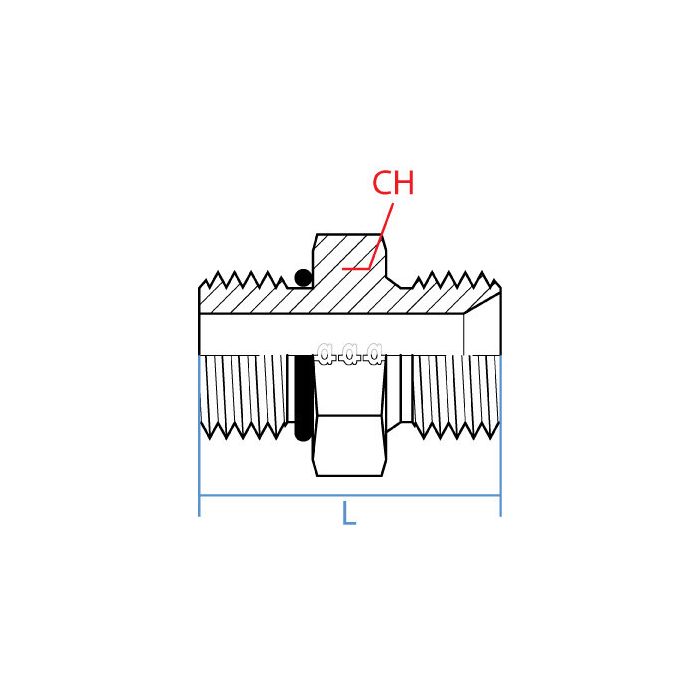

CH Width 19mm	L Length 27.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orb-Sae	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 3620-06-04, Alternate Part Number 9006-0604	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-06-04	Product Weight 0.08 lbs

Product Questions & Answers (2)

Question by: Harold W on Apr 27, 2025, 6:21 PM

Can this here fitting handle hydraulic fluid okay?

Answer by: Customer Support on Apr 29, 2025, 6:28 AM

This adapter is made from steel, so it's compatible with standard hydraulic fluids used in most systems.

Question by: Terry P on Jul 25, 2025, 1:43 PM

trying to hook an SAE ORB port to a BSPP port, is this the straight adapter for that?

Answer by: Customer Support on Jul 27, 2025, 8:05 AM

For tying two different thread standards together, this one is a straight steel adapter with a 3/8 inch male SAE O-Ring Boss end (9/16-18 UNF) and a 1/4 inch male BSPP end (G 1/4-19). It is meant for straight-line connections between SAE and BSP hydraulic circuits.
