Male Sae 0-Ring Boss-Male Bspp

Description & Features

The ADAPTALL America connector is precision-engineered for industrial applications, offering robust performance and reliability. This straight steel connector features a 9/16 - 18 UNF Orb-Sae male end on one side and a G 1/2 - 14 Bspp male end on the other, ensuring secure and leak-proof connections essential for maintaining operational integrity.

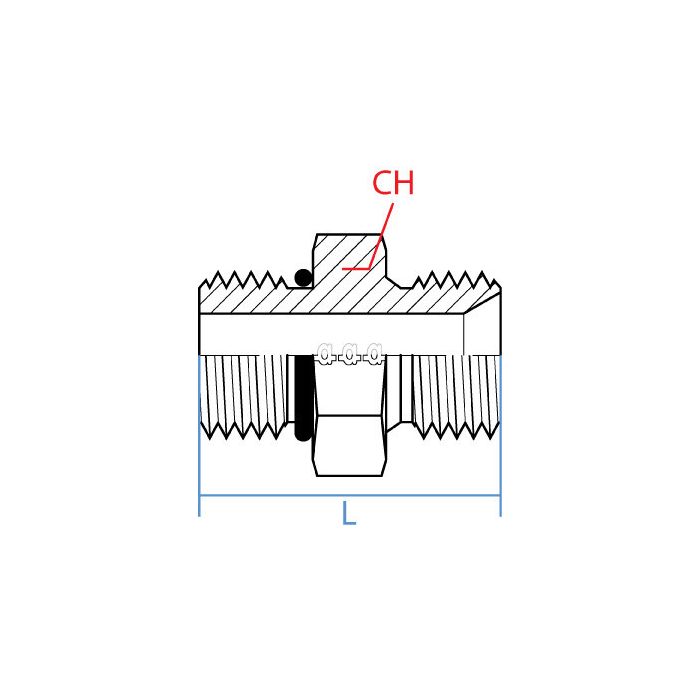

With a CH width of 27mm and L length of 33.8mm, the component is designed to fit precisely and function efficiently in demanding environments. It adheres to stringent industry standards, providing exceptional performance.

Supplier Part Number: 9006-06-08

MPN: 9006-06-08

Specifications

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Male BSPP	Dimension Standards BS 5200, SAE J1926	Dimensions 32.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9006 Series	Thread Size 1/2-14 x 9/16-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
9006-04-04	1/4 in	1/4 in	7/16-20 x 1/4-19
9006-04-06	1/4 in	3/8 in	3/8-19 x 7/16-20
9006-04-08	1/4 in	1/2 in	7/16-20, 1/2-14
9006-06-04	3/8 in	1/4 in	9/16-18 x 1/4-19
9006-06-06	3/8 in	3/8 in	9/16-18 x 3/8-19
9006-08-04	1/2 in	1/4 in	3/4-16 x 1/4-19
9006-08-06	1/2 in	3/8 in	3/4-16, 3/8-19
9006-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14
9006-08-10	1/2 in	5/8 in	5/8-14 x 3/4-16
9006-08-12	1/2 in	3/4 in	3/4-16 x 3/4-14
9006-10-06	5/8 in	3/8 in	7/8-14 x 3/8-19
9006-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14
9006-10-10	5/8 in	5/8 in	5/8-14 x 7/8-14
9006-10-12	5/8 in	3/4 in	3/4-14, 7/8-14
9006-12-08	3/4 in	1/2 in	1-1/16-12 x 1/2-14
9006-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
9006-12-16	3/4 in	1 in	1-1/16-12 x 1-11
9006-16-12	1 in	3/4 in	3/4-14, 1-5/16-12
9006-16-16	1 in	1 in	1-5/16-12 x 1-11
9006-16-20	1 in	1-1/4 in	1-5/16-12, 1-1/4-11
9006-20-16	1-1/4 in	1 in	1-5/8-12 x 1-11
9006-20-20	1-1/4 in	1-1/4 in	1-1/4-11 x 1-5/8-12
9006-20-24	1-1/4 in	1-1/2 in	1-5/8-12 x 1-1/2-11
9006-24-24	1-1/2 in	1-1/2 in	1-7/8-12 x G1-1/2-11

Product Questions & Answers (1)

Question by: Billy H on Apr 25, 2025, 8:04 AM

i’ve got a 9/16-18 ORB on one side and need to go over to a G 1/2-14 BSPP port, is this the right adapter?

Answer by: Customer Support on Apr 27, 2025, 6:55 AM

For that ORB to BSPP changeover, this connector matches a 9/16-18 UNF ORB SAE male on one end and a G 1/2-14 BSPP male on the other. It is a straight steel adapter, so it is meant to connect those two thread types directly.
