Male Sae O-Ring Boss-Male Bspp

Description & Features

Featuring a robust steel construction, this adapter ensures reliability and durability in demanding industrial applications. The Male Sae O-Ring Boss-Male Bspp adapter is designed for ease of installation and secure connections.

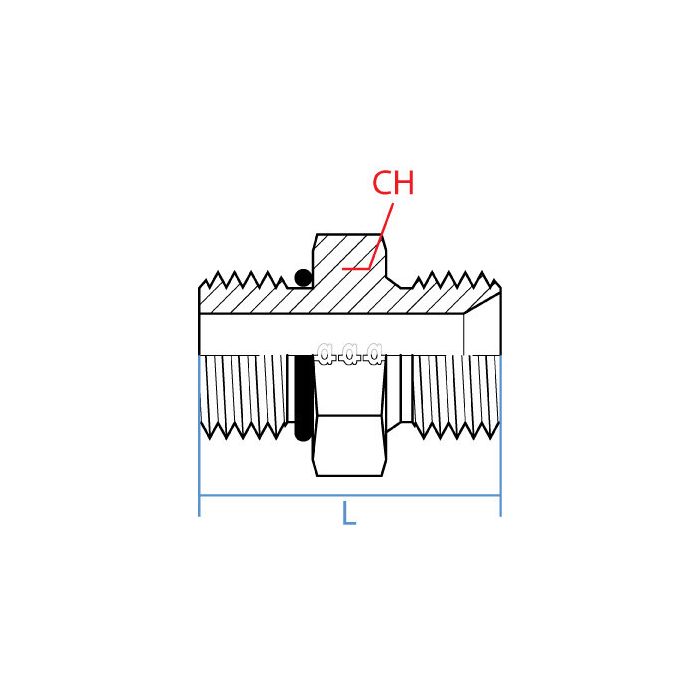

The male SAE O-ring boss end has a 3/4 - 16 UNF callout with a 1/2" thread size, while the male BSPP end features a G 3/8 - 19 callout with a 3/8" thread size. Measuring 22mm in width and 34.4mm in length, this adapter fits seamlessly into compact spaces.

Crafted from high-quality steel, this straight-shaped adapter is a part of Adaptall Americarsquo;s trusted range. There are no additional adjustment mechanisms, mandrels, or calibration required, ensuring a hassle-free solution. This product does not include blades, color coding, or electrical components, focusing on providing reliable and precise connections.

Supplier Part Number: 9006-08-06

MPN: 9006-08-06

Specifications

CH Width 22mm	L Length 34.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orb-Sae	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-08-06	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Shane R on May 3, 2025, 9:45 AM

trying to hook an SAE ORB port up to a BSPP line, is this the right adapter?

Answer by: Customer Support on May 4, 2025, 4:14 PM

For that kind of mix-and-match connection, this adapter is meant to bridge a male SAE O-ring boss end to a male BSPP end. Side 1 is a male ORB-SAE with a 3/4 - 16 UNF callout and 1/2 inch size, and side 2 is a male BSPP with a G 3/8 - 19 callout and 3/8 inch size.
