Male Sae O-Ring Boss-Male Bspp

Description & Features

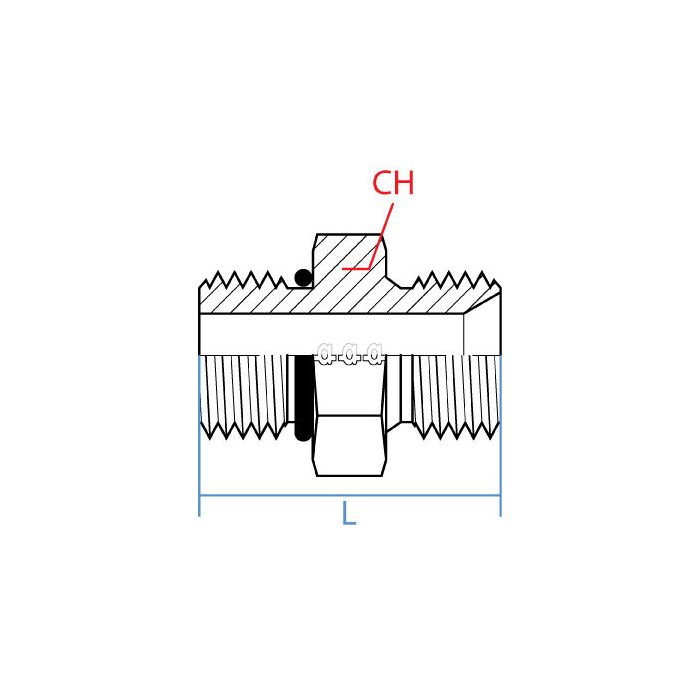

Designed for efficiency in industrial systems, this connector is manufactured with high-quality steel, ensuring durability and performance. The straight design with a CH width of 30mm and a length of 38mm, makes it ideal for tight spaces while providing strong, secure connections.

Side 1 features a male O-ring Boss (Orb-Sae) connection with a 3/4 - 16 UNF thread, fitting a 1/2" size. Side 2 is equipped with a male British Standard Pipe Parallel (Bspp) connection, featuring a G 5/8 - 14 thread for a 5/8" size. This specific threading allows seamless integration into compatible systems.

Manufactured by Adaptall America, this connector is recognized for its dependable performance in various challenging environments. It lacks features such as adjustable ends, calibration, and color coding, streamlining its utility for specific industrial applications.

Supplier Part Number: 9006-08-10

Specifications

CH Width 30mm	L Length 38mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orb-Sae	Side 2 Callout G 5/8 - 14	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-08-10	Product Weight 0.20 lbs

Product Questions & Answers (2)

Question by: Neal M on Feb 1, 2026, 2:56 PM

Is this thing good for hooking up to a BSPP port?

Answer by: Customer Support on Feb 3, 2026, 10:15 AM

Functionally, yes, this fitting is designed to connect to a female BSPP port with a male SAE O-ring boss connection.

Question by: Patty H on Jan 1, 2026, 3:15 PM

reckon this male sae o-ring boss to male bspp is what i need to connect my old pump lines?

Answer by: Customer Support on Jan 3, 2026, 7:36 AM

Based on the name, it's an adapter fitting that goes from male SAE O-ring boss to male BSPP, so it could work for linking those specific thread types in hydraulic setups.
