Male Sae O-Ring Boss-Male Bspp

Description & Features

The Male Sae O-Ring Boss-Male Bspp fitting ensures robust and reliable connections in industrial environments. Constructed from premium steel this fitting provides long-lasting durability and efficient performance.

Featuring a straight design it allows for streamlined connection between components. The male Orb-Sae thread of 1-5/16 - 12 UN on one end and the male Bspp thread of G 3/4 - 14 on the other end offer versatility and compatibility with various systems.

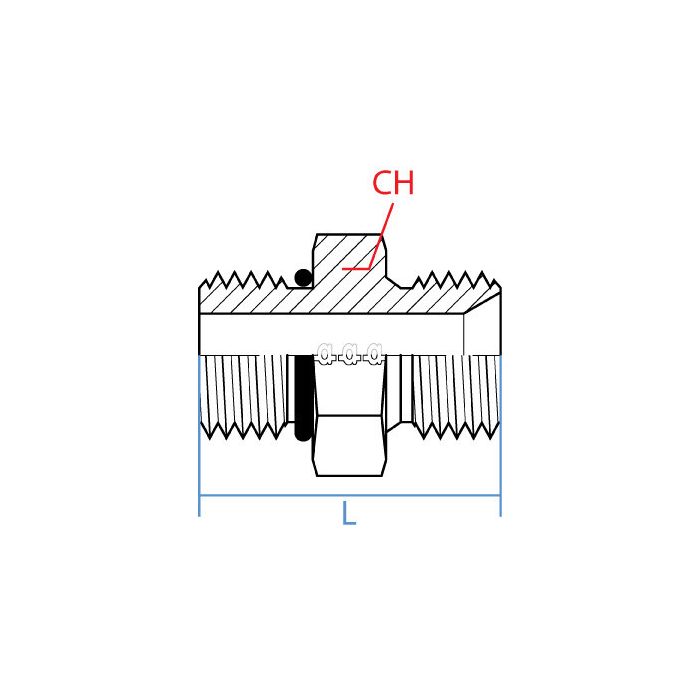

With a CH width of 38mm and a length of 44.6mm this fitting is suitable for multiple configurations. Designed without adjustable ends or additional features it ensures straightforward functionality.

Manufactured by Adaptall America the Male Sae O-Ring Boss-Male Bspp is a dependable component for industrial needs.

Supplier Part Number: 9006-16-12

Specifications

CH Width 38mm	L Length 44.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orb-Sae	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-16-12	Product Weight 0.41 lbs

Product Questions & Answers (2)

Question by: Shane R on Sep 12, 2025, 3:42 PM

got a line with 1-5/16 - 12 UN ORB on one side and G 3/4 - 14 BSPP on the other, is this the right adapter?

Answer by: Customer Support on Sep 14, 2025, 6:51 AM

For that exact thread pairing, yes. One end is a male ORB SAE thread in 1-5/16 - 12 UN (listed as Side 1, 1 inch), and the other end is a male BSPP thread in G 3/4 - 14 (Side 2, 3/4 inch). It is a straight steel fitting.

Question by: Shane F on Jun 3, 2025, 9:59 PM

If my setup uses metric threads, will this adapter do the trick?

Answer by: Customer Support on Jun 5, 2025, 4:29 PM

This fitting adapts between a 1-5/16 - 12 UN male O-ring boss and a G 3/4 - 14 male BSPP thread, so it's designed for connecting those specific thread types. If you've got metric threads, you'll need a different adapter.
