Male Sae O-Ring Boss-Male Bspp

Description & Features

Constructed with precision this straight adapter is ideal for industrial applications requiring secure and reliable fittings. Manufactured by Adaptall America the Male Sae O-Ring Boss-Male Bspp is constructed from robust steel to ensure longevity and performance.

Featuring an Orb-Sae male connection on one end sized at 1-5/16 - 12 UN and a Bspp male connection on the other sized at G 1 - 11 this adapter supports versatile usage. It measures 41mm in width and 45.9mm in length tailored to meet exacting standards.

Engineered without adjustable ends cases remote control or additional components like blades and battery it offers straightforward integration into existing setups enhancing functionality without unnecessary items.

Supplier Part Number: 9006-16-16

Specifications

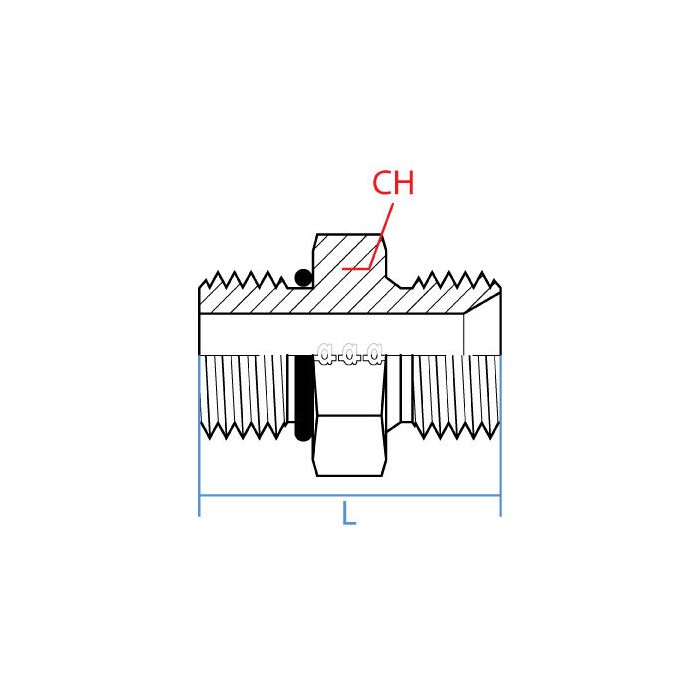

CH Width 41mm	L Length 45.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orb-Sae	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9006-16-16	Product Weight 0.60 lbs

Product Questions & Answers (1)

Question by: Shawn P on Oct 25, 2025, 9:39 PM

got a hose end that’s 1-5/16 - 12 UN ORB, will this adapter mate up to a G 1 - 11 BSPP port on the other side?

Answer by: Customer Support on Oct 27, 2025, 8:47 AM

Built as a straight ORB SAE male to BSPP male adapter, it has a 1-5/16 - 12 UN (ORB SAE) male on one end and a G 1 - 11 (BSPP) male on the other, both listed as 1 inch size.
