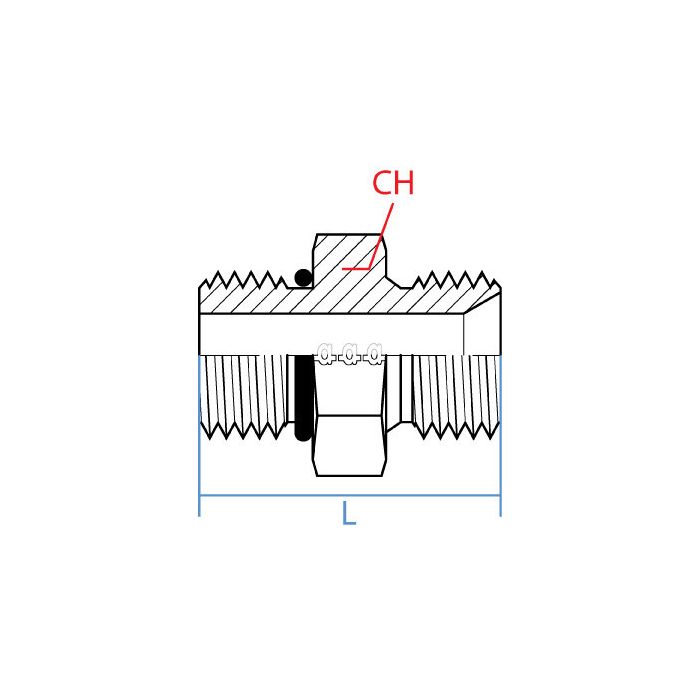

main product photo

Male Sae O-Ring Boss-Male Bspp

Ask A Question

Description & Features

Engineered for precision and reliability, this Male SAE O-Ring Boss to Male BSPP adapter demonstrates exceptional functionality in hydraulic systems. Crafted from durable steel, it ensures robust performance in demanding environments. The adapter features a straight configuration, facilitating seamless connections where directional changes are not required.

On one side, the adapter offers a 1-5/8 - 12 UN male SAE O-Ring Boss connection, while the opposite end is equipped with a G 1-1/2 - 11 male BSPP thread. This dual compatibility enhances versatility, making it an ideal choice for various industrial applications requiring adaptation between these thread types. With a compact design, including a 55mm width and 51.2mm length, it fits efficiently into existing setups without sacrificing strength or integrity.

SKU: 9006-20-24

Supplier Part Number (MPN): 9006-20-24

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
Male BSP, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J1926
Dimensions
55 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9006 Series
Thread Size
1-5/8-12 x 1-1/2-11

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Duane W on May 18, 2025, 6:20 AM
Will this here fitting work to hook up a SAE O-ring to a BSPP?
Answer by: Customer Support on May 20, 2025, 6:17 AM
This adapter is designed to do just that, connecting a 1-5/8 - 12 UN male SAE O-Ring Boss to a G 1-1/2 - 11 male BSPP thread.
Question by: Johnny B on Apr 9, 2025, 10:30 AM
Got a piece of equipment running BSPP fittings on one end and SAE O-Ring Boss on the other, this straight adapter supposed to handle that crossover without any reducers or extra pieces in between?
Answer by: Customer Support on Apr 10, 2025, 9:33 PM
That's what it's built for. One end threads into a 1-5/8 - 12 UN SAE O-Ring Boss port, and the other end is a G 1-1/2 - 11 male BSPP. No reducers, no adapters stacked on adapters. Just the one piece bridging those two thread standards. The straight configuration means it works best where your ports are already lined up and you don't need any angular offset.
