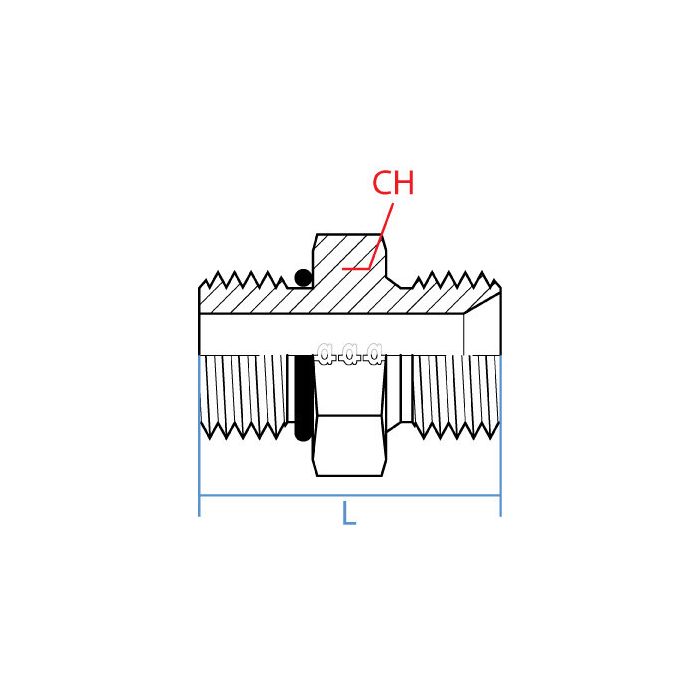

main product photo

Male Sae O-Ring Boss-Male Bspp

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this 1-1/2" adapter connects a Male SAE O-Ring Boss thread (1-7/8-12 UN) on one end to a Male BSPP thread (G 1-1/2-11) on the other, bridging two widely used hydraulic port standards in a single compact fitting. The Male SAE O-Ring Boss-Male BSPP adapter measures 54mm in length with a 55mm across flats width, making it well-suited for installations where space and alignment are considerations.

Manufactured by Adaptall, this fitting is a practical solution for hydraulic systems that require a transition between SAE O-Ring Boss (ORB) and British Standard Parallel Pipe (BSPP) connections, commonly encountered when integrating components of mixed international origin. The steel construction provides reliable durability in demanding industrial hydraulic applications.

SKU: 9006-24-24

Supplier Part Number (MPN): 9006-24-24

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male BSP, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J1926
Dimensions
52.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
9006 Series
Thread Size
1-7/8-12 x G1-1/2-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Neal S on Aug 16, 2025, 2:57 PM
So this here adapter, it's got different threads on each end, right? Just wanna make sure I'm understandin' it correctly.
Answer by: Customer Support on Aug 17, 2025, 8:53 PM
You're spot on. On one side, you have the SAE O-Ring Boss thread (1-7/8-12 UN), and on the other is a Male BSPP thread (G 1-1/2-11). It's made for connectin' those two different types of hydraulic ports.
