Male Bspp X Male Npt Nipple

Description & Features

Designed to bridge BSPP and NPT threaded connections in a straight configuration, this Male BSPP X Male NPT Nipple is manufactured from steel and suited for hydraulic and industrial fluid systems requiring a transition between these two common thread standards. One end features a G 3/8-19 male BSPP thread (3/8"), while the opposite end carries a 1/2-14 NPTF male NPT thread (1/2"), allowing direct connection between components with differing thread types.

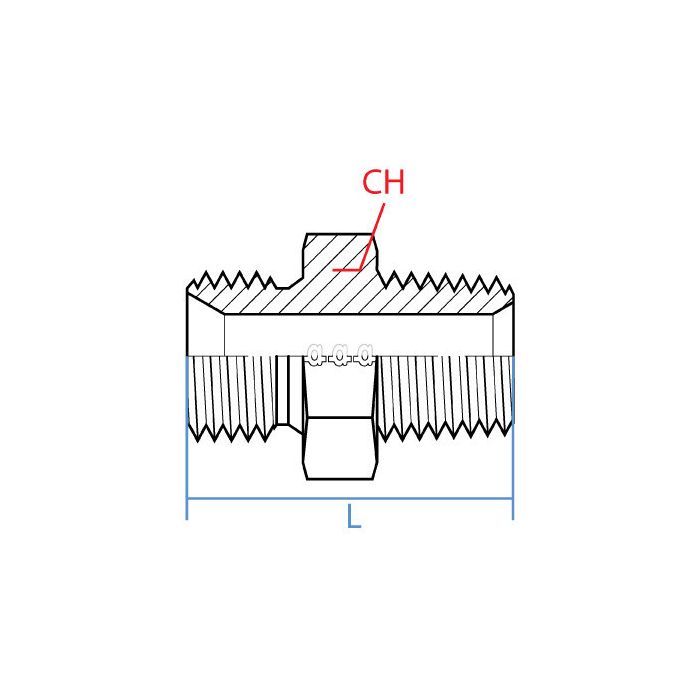

At 40.8mm in length with a 22mm across-flats wrench width, the fitting is compact and straightforward to install. Produced by Adaptall, it is part of a broad range of interchangeable hydraulic adapters designed for reliable performance across diverse industrial fluid system configurations.

SKU: 9007-06-08

Supplier Part Number (MPN): 9007-06-08

Alternate Part Numbers: 3825-06-08

Specifications

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Male BSP, MNPT	Connection Type 1 Male BSPP	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, BS 5200	Dimensions 40 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction Carbon Steel	Series 9007 Series	Thread Size 1/2-14 x 3/8-19

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
9007-02-02	1/8 in	1/8 in	1/8-27 x G1/8-28	14 mm
9007-02-04	1/8 in	1/4 in	1/8-28 x 1/4-18	14 mm
9007-04-02	1/4 in	1/8 in	1/4-19 x 1/8-27	19 mm
9007-04-04 Steel Male BSPP To NPT Adapter	1/4 in	1/4 in	1/4-19 x 1/4-18	19 mm
9007-04-06	1/4 in	3/8 in	1/4-19 x 3/8-18	19 mm
9007-04-08	1/4 in	1/2 in	1/4-19 x 1/2-14	22 mm
9007-06-04	3/8 in	1/4 in	1/4-19 x 3/8-18	22 mm
9007-06-06 Steel Male BSPP To NPT Adapter	3/8 in	3/8 in	3/8-19 x 3/8-18	22 mm
9007-08-04	1/2 in	1/4 in	1/2-14 x 1/4-18	27 mm
9007-08-06	1/2 in	3/8 in	1/2-14 x 3/8-18	27 mm
9007-08-08 Steel Male BSPP To NPT Adapter	1/2 in	1/2 in	1/2-14	27 mm
9007-08-10	1/2 in	5/8 in
9007-08-12	1/2 in	3/4 in	3/4-14 x 1/2-14	27 mm
9007-10-08	5/8 in	1/2 in	1/2-14 x 5/8-14
9007-12-08	3/4 in	1/2 in	3/4-14 x 1/2-14	32 mm
9007-12-12 Steel Male BSPP To NPT Adapter	3/4 in	3/4 in	3/4-14	32 mm
9007-12-16	3/4 in	1 in	1-11-1/2 x 3/4-14	36 mm
9007-16-08	1 in	1/2 in	1-11 x 1/2-14	41 mm
9007-16-12	1 in	3/4 in	1-11 x 3/4-14	41 mm
9007-16-16	1 in	1 in	1-11 x 1-11-1/2	41 mm
9007-16-20	1 in	1-1/4 in	1-11 x 1-1/4-11-1/2
9007-20-20	1-1/4 in	1-1/4 in	1-1/4-11-1/2 x 1-1/4-11
9007-24-16	1-1/2 in	1 in	1-1/2-11 x 1-11-1/2	55 mm
9007-24-20	1-1/2 in	1-1/4 in	1-1/2-11 x 1-1/4-11-1/2	55 mm
9007-24-24	1-1/2 in	1-1/2 in	1-1/2-11 x 1-1/2-11-1/2	55 mm
9007-32-24	2 in	1-1/2 in	2-11 x 1-1/2-11-1/2
9007-32-32	2 in	2 in	2-11 x 2-11-1/2
9007-40-32	2-1/2 in	2 in	2-1/2-11 x 2-11-1/2
9007-40-40	2-1/2 in	2-1/2 in	2-1/2-11 x 2-1/2-8
