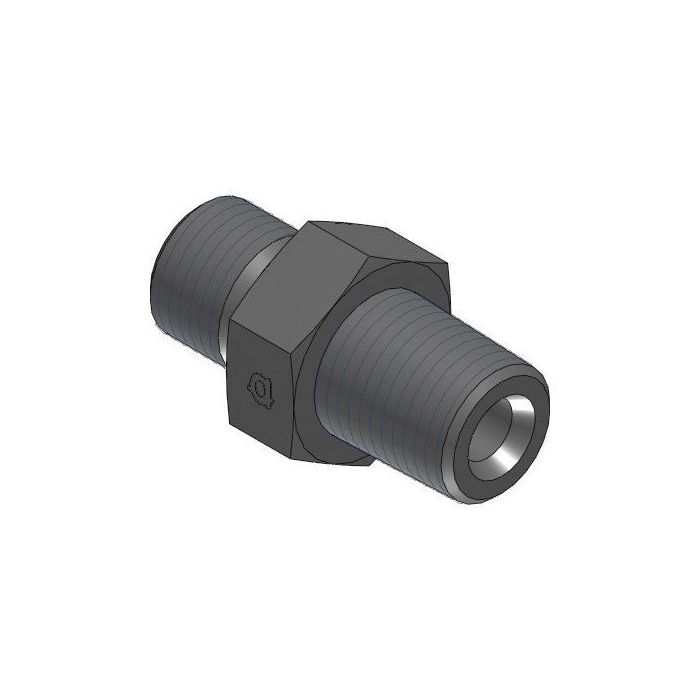

Male Bspp X Male Npt Nipple

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this 1-1/2" Male BSPP x Male NPT Nipple provides a reliable threaded conversion between G 1-1/2 - 11 BSPP and 1-1/2 - 11.5 NPTF thread standards. At 62mm in length with a 55mm across-flats width, it suits installations where a compact, fixed-length adapter is appropriate.

Manufactured by Adaptall, the Male Bspp X Male Npt Nipple is a practical solution for connecting hydraulic circuits or fluid line assemblies that combine British Standard Parallel Pipe threads with National Pipe Taper Fuel threads. The all-steel construction supports use in demanding industrial environments where durability and thread integrity are required.

SKU: 9007-24-24

Supplier Part Number (MPN): 9007-24-24

Specifications

Brand
adapt-all
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPP
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
60 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
9007 Series
Thread Size
1-1/2-11 x 1-1/2-11-1/2

Product Questions & Answers (2)

Question by: Kurt R on Jul 20, 2025, 10:24 AM
What's the width of this nipple across the flats? Just need to make sure my wrench will fit.
Answer by: Customer Support on Jul 22, 2025, 7:52 AM
The width across the flats on this Adaptall nipple is 55mm, so you can double-check your wrench size to ensure a good fit.
Question by: Jimmy B on Dec 6, 2025, 2:31 PM
Got a piece of equipment running G 1-1/2 - 11 BSPP fittings and need to tie it into a line with 1-1/2 NPT ports. This nipple do the job?
Answer by: Customer Support on Dec 8, 2025, 6:41 AM
That's exactly what this fitting is built for. One end is G 1-1/2 - 11 BSPP and the other is 1-1/2 - 11.5 NPTF, both male, so it bridges those two thread standards directly. Steel construction holds up in working hydraulic and fluid line environments, and at 62mm long it keeps the adapter footprint pretty tight. As long as your ports match those thread callouts, this is a straightforward solution.
