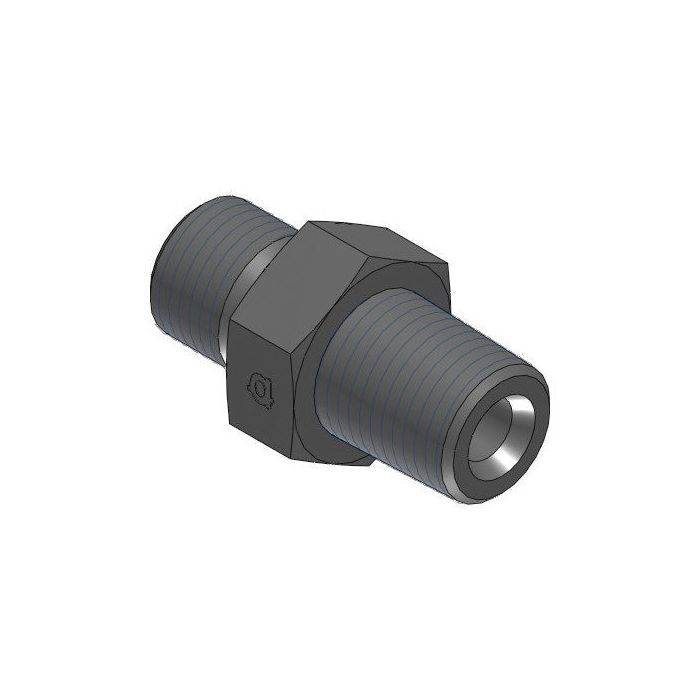

Male Bspp X Male Npt Nipple

Description & Features

This steel straight nipple fitting adapts between BSPP and NPT threaded connections. It features a 2" male BSPP side 1 and a 2" male NPT side 2.

The Adaptall 9007-32-32 Male Bspp X Male Npt Nipple has a 70mm wrench flat width and an overall length of 67.1mm.

SKU: 9007-32-32

Supplier Part Number (MPN): 9007-32-32

Specifications

Brand
adapt-all
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPP
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, BS 5200
Dimensions
67 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9007 Series
Thread Size
2-11 x 2-11-1/2

Product Questions & Answers (3)

Question by: Todd F on Apr 18, 2025, 1:35 PM
got a 2 inch BSPP port on one side and 2 inch NPT on the other, is this the straight nipple that ties those together?
Answer by: Customer Support on Apr 20, 2025, 6:03 AM
Built for exactly that adapter job, it has a 2 inch male BSPP thread on side 1 (G 2 - 11) and a 2 inch male NPTF thread on side 2 (2 - 11.5 NPTF), both in a straight steel nipple.
Question by: Donna J on May 19, 2025, 9:56 PM
Got a pump manifold here with a 2" BSPP port and the mating piece is NPT. This nipple gonna bridge that gap straight up?
Answer by: Customer Support on May 21, 2025, 12:04 PM
That's what this fitting handles. One end is 2" male BSPP (G 2-11 thread), the other is 2" male NPT (2-11.5 NPTF), so it connects those two thread standards directly without any intermediate adapter. Both sides are the same 2" size, so flow path stays consistent across the connection. Steel construction, and at 67.1mm overall length it's a fairly compact piece for what it's doing.
Question by: Marvin F on May 10, 2025, 9:11 PM
Reckon this'll hold up okay for hooking up some hydraulic lines? I need to make sure it won't leak on me.
Answer by: Customer Support on May 12, 2025, 6:09 PM
Designed to adapt BSPP to NPT connections, this steel nipple fitting should provide a solid, leak-free connection when properly installed. Just be sure both sides are torqued to the appropriate spec for your system.
