Bspt X Npt Nipple

Ask A Question

Description & Features

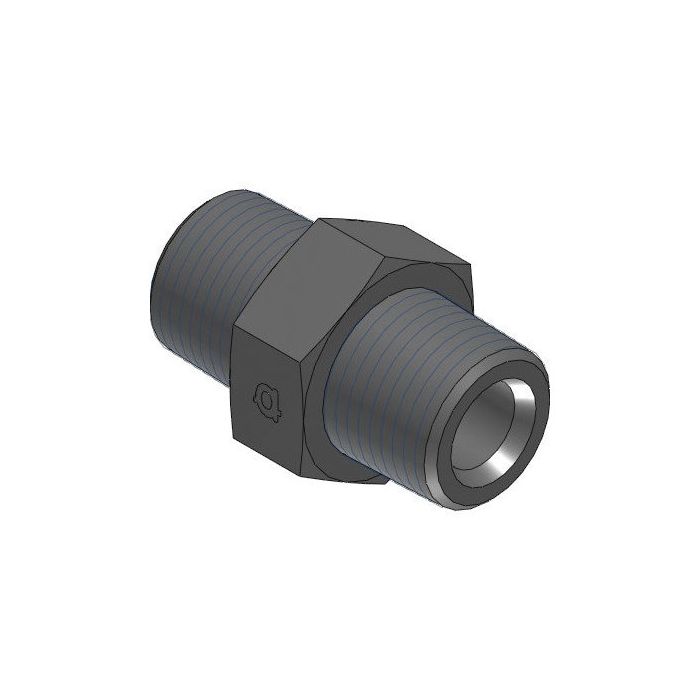

Constructed from durable steel, the Bspt X NPT Nipple is designed to ensure reliable connections in industrial hydraulic systems. This straight adapter features male BSPT and NPT threads, allowing it to connect parts with different thread standards seamlessly. With an Adaptall Ch Width of 11mm and a length of 27.5mm, this nipple is engineered for precision and compatibility.

On one end, the adapter has a BSPT (British Standard Pipe Taper) male thread with a 1/8" size and R 1/8 - 28 callout. The opposite end features an NPTF (National Pipe Taper Fuel) male thread, sized at 1/8" with a 1/8 - 27 callout. This dual-threading capability makes it versatile for various industrial applications that require the bridging of different thread types.

SKU: 9008-02-02

Supplier Part Number (MPN): 9008-02-02

Specifications

Brand
adapt-all
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPT
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1, ISO 7-1
Dimensions
27.5 mm L
Finish
Zinc-Plated
Fitting Type
Nipple
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9008 Series
Thread Size
1/8-27 x G1/8-28

Product Questions & Answers (3)

Question by: Pete G on Sep 23, 2025, 8:55 AM
Got a piece of equipment running BSPT fittings on one port and NPT on another, this little nipple bridge the gap between them?
Answer by: Customer Support on Sep 24, 2025, 10:02 AM
Steel construction, male threads on both ends, one side R 1/8-28 BSPT and the other 1/8-27 NPTF. That's exactly the kind of mixed-thread situation this fitting is built for. Both sides are 1/8" size, so as long as your ports match up to those specs, you've got yourself a solid mechanical connection between the two thread standards.
Question by: Dean W on Jan 5, 2026, 12:53 PM
got a port that’s R 1/8 - 28 on one side and 1/8 - 27 NPTF on the other. is this the right little nipple to tie those together?
Answer by: Customer Support on Jan 7, 2026, 10:41 AM
Built for exactly that kind of mix, it is a straight steel nipple with a male BSPT R 1/8 - 28 thread on one end and a male 1/8 - 27 NPTF thread on the other, both in 1/8 inch size.
Question by: Harold J on Jul 13, 2025, 2:22 PM
What kind of steel is this nipple made out of? Just need somethin' that'll hold up.
Answer by: Customer Support on Jul 14, 2025, 9:39 PM
Constructed from durable steel, this nipple adapter is built for reliable connections in industrial hydraulic systems, so it should provide the durability you're looking for.
