Bspt X Npt Nipple

Description & Features

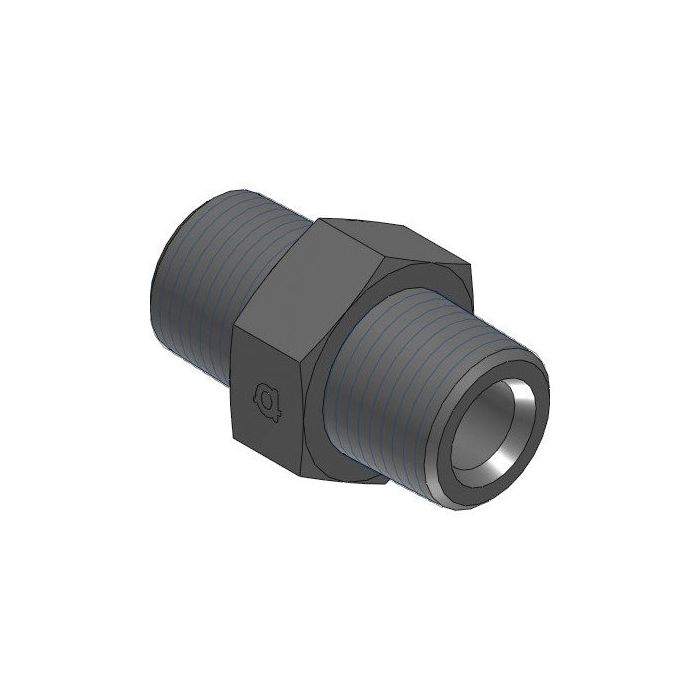

This steel straight nipple fitting adapts between BSPT and NPT thread types.

The Adaptall fitting features a 3/8" male BSPT (R 3/8 - 19) connection on one side and a 3/8" male NPT (3/8 - 18 NPTF) connection on the other. It has a 17.5mm width across flats and an overall length of 38mm. This Bspt X NPT Nipple is suitable for adapting various fluid conveyance components with different thread standards.

SKU: 9008-06-06

Supplier Part Number (MPN): 9008-06-06

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPT
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1, ISO 7-1
Dimensions
37 mm L
Finish
Zinc-Plated
Fitting Type
Nipple
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9008 Series
Thread Size
3/8-19 x 3/8-18

Product Questions & Answers (2)

Question by: Larry Y on Jan 16, 2026, 5:36 PM
Will this fitting work to connect something with a BSPT thread to something with an NPT thread?
Answer by: Customer Support on Jan 18, 2026, 7:29 AM
Yes, this steel nipple is designed to adapt between BSPT and NPT thread types. It has a 3/8" male BSPT connection on one side and a 3/8" male NPT connection on the other.
Question by: Gary R on Oct 24, 2025, 2:59 PM
Got a piece of equipment running BSPT fittings and need to tie into an NPT line, this the right part to make that happen?
Answer by: Customer Support on Oct 26, 2025, 10:07 AM
That's what this fitting is built for. One end is 3/8" male BSPT (R 3/8 - 19) and the other is 3/8" male NPT (3/8 - 18 NPTF), so it bridges those two thread standards in a straight-through configuration. Both sides are the same size, so there's no reduction happening. Steel construction, 38mm overall length, 17.5mm across the flats. If your application calls for a direct male-to-male adapter between those two thread types at 3/8", this does the job.
