Bspt X Npt Nipple

Description & Features

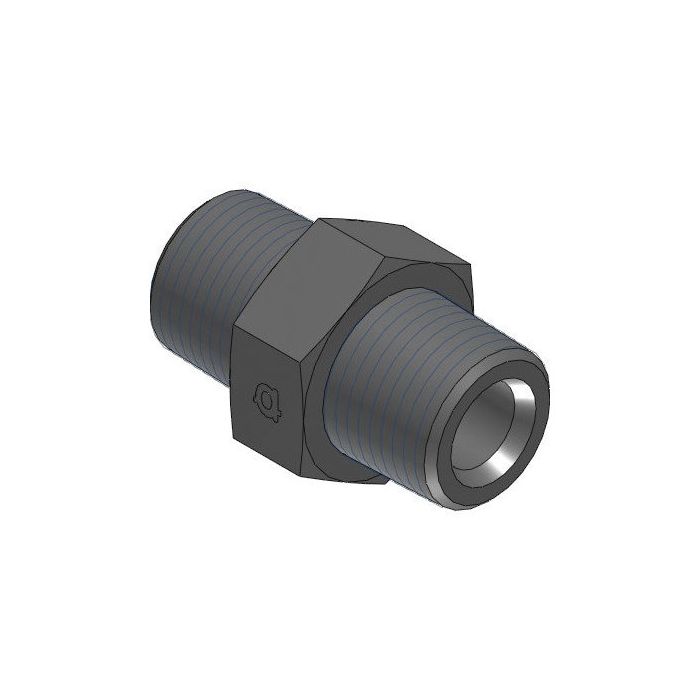

A straight steel nipple bridging BSPT and NPT thread standards, this Adaptall fitting connects a male R 1/2 - 14 BSPT thread on one end to a male 1/2 - 14 NPTF thread on the other. At 49.1mm in length with a 22mm wrench flat, it is well suited for joining hydraulic lines and components where British and North American thread systems meet on the same circuit.

Manufactured by Adaptall in steel, the straight configuration keeps the connection compact and in-line. The 1/2" size on both sides makes it a practical solution for cross-standard assemblies without requiring additional adapters or reducers.

SKU: 9008-08-08

Supplier Part Number (MPN): 9008-08-08

Specifications

Brand adapt-all	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male BSP, MNPT	Connection Type 1 Male BSPT	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN EN 10226-1, ISO 7-1	Dimensions 50 mm L	Finish Zinc-Plated	Fitting Type Nipple	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9008 Series	Thread Size 1/2-14

Product Questions & Answers (1)

Question by: Dustin L on May 25, 2025, 10:07 AM

Will this here fitting hold up alright if I'm runnin' some serious pressure through it on a regular basis?

Answer by: Customer Support on May 26, 2025, 1:14 PM

Constructed from steel, this Adaptall nipple should provide a robust connection for hydraulic systems running at standard pressures, keeping in mind it's best practice to consult your system's pressure ratings to ensure compatibility.
